LIPSMetric™ HA110 Handheld Dimensioner

Measurement Made Easy

Dimension Measurement Anytime and Anywhere

Package, Parcel Dimensioner

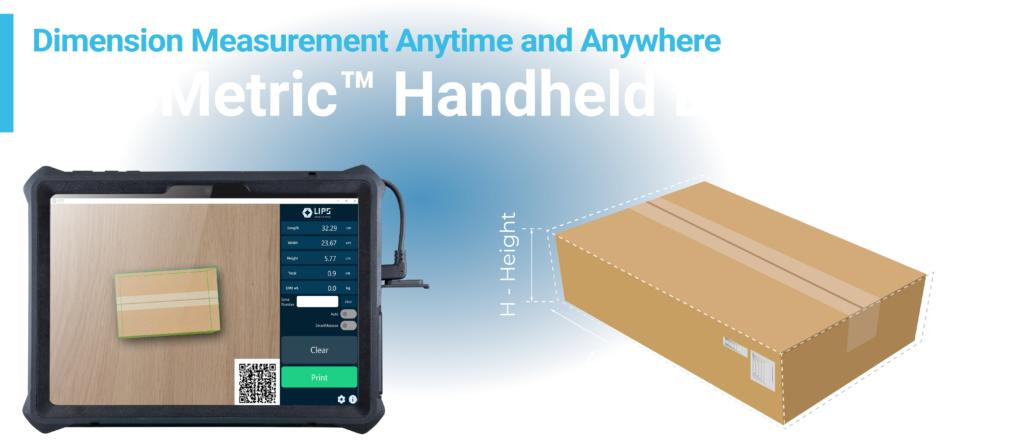

LIPSMetric HA110 Handheld Dimensioner

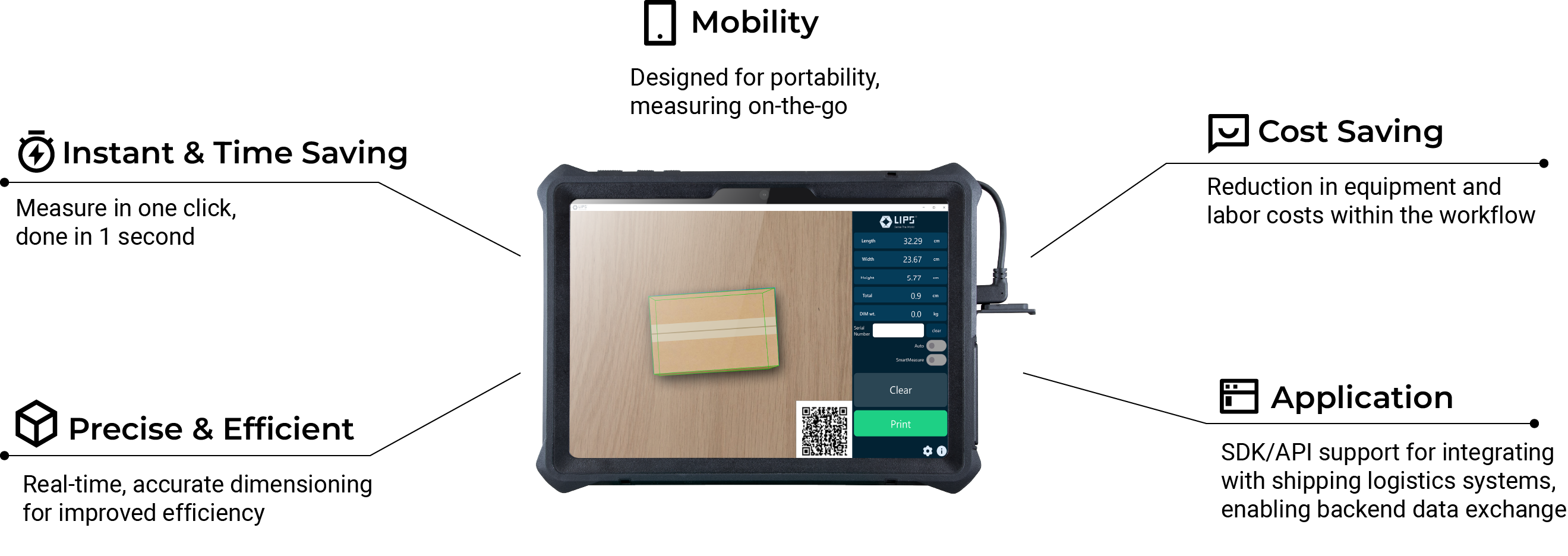

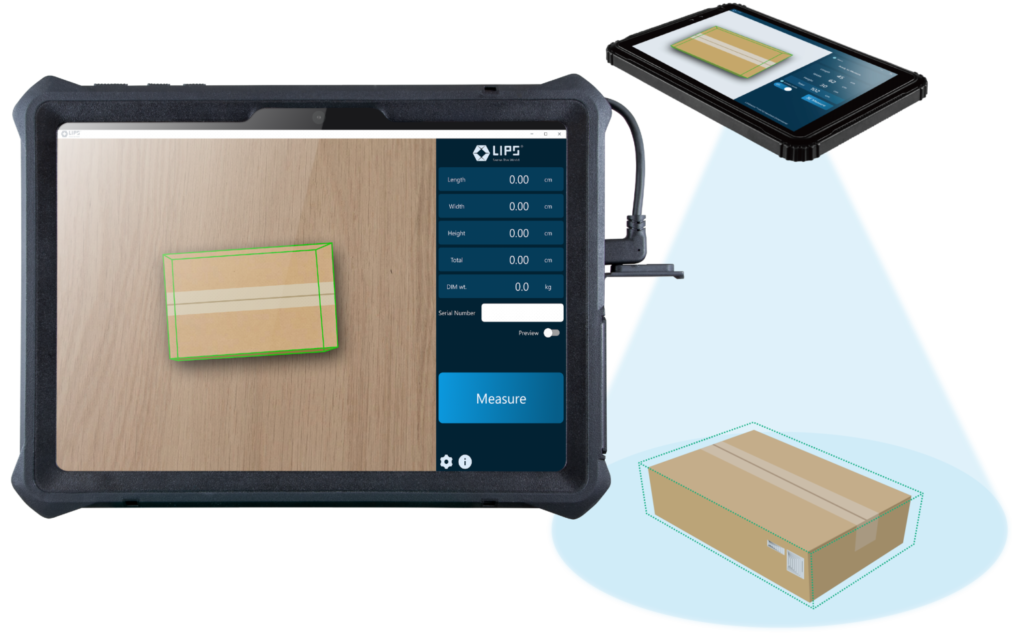

LIPSMetric™ HA110/115 Handheld Dimensioner is a 3D camera kit designed for handheld devices such as tablet, scanner, or PDA to integrate dimension measurement capability. The solution comes with LIPSedge™ L210/215 Structured-Light Camera and LIPSMetric Handheld Dimensioner application which allow the instant dimensioning of the underlying object. LIPSMetric™ HA110/115 Handheld Dimensioner can increase productivity for logistic, warehouse, retail, ecommerce, and manufacture operations.

The challenges

Measuring 1 package is easy. How about measuring 10, 100 or 1000 packages?

High Rate of
Human Errors

Low efficiency
of process

Labor costs increase
year by year

Equipment cost
too expensive

Dimension Measurement Solution

The solution based on Structured Light

The solution comes with LIPSedge™ L210u Structured Light Camera Module and LIPSMetric™ Handheld Dimensioner application which allow the instant dimensioning of the underlying object. Structured Light Technology is the best alternative for 3D depth measurement when it comes to precision and details

Cubic and Non-Cubic capable

資產 220_2x.png
資產 222_2x.png
資產 221_2x.png
資產 126_4x.png

A Tiny Module

A module of 54mm * 26.6mm * 14.3mm fits anywhere in existing tooling and housings

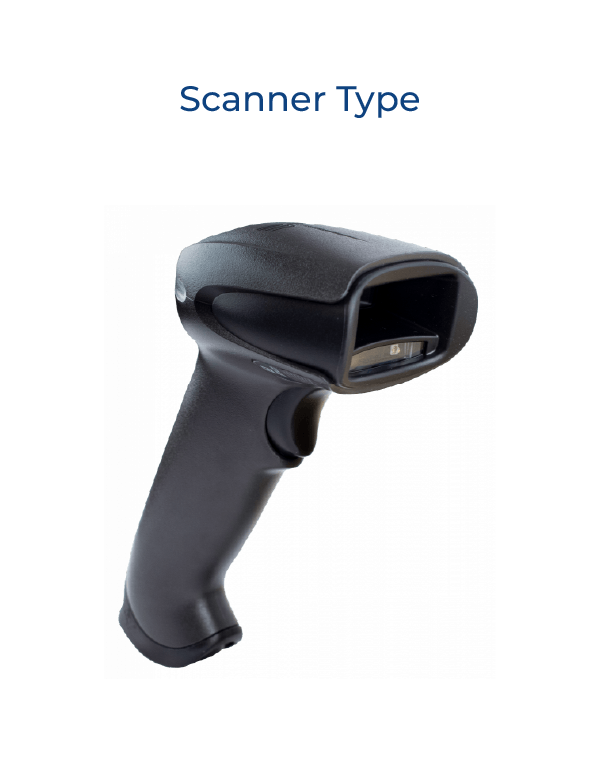

Scanner Type

Freight Dimensional Scanner

PDA Type

PDA Dimension measurement

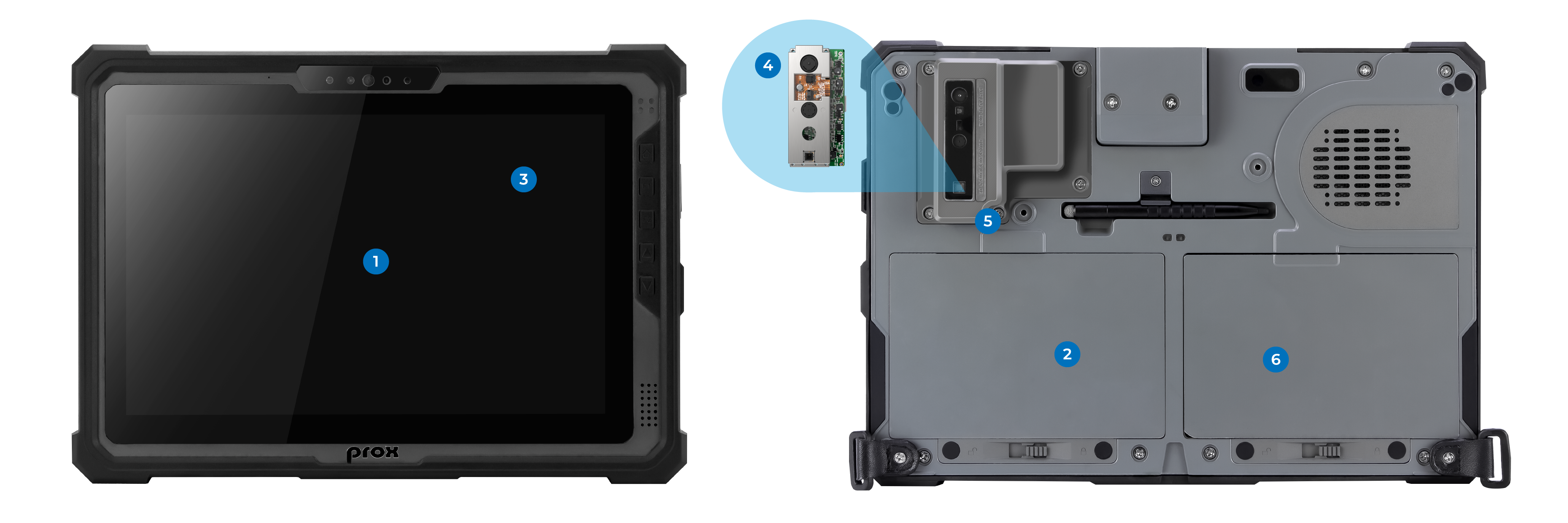

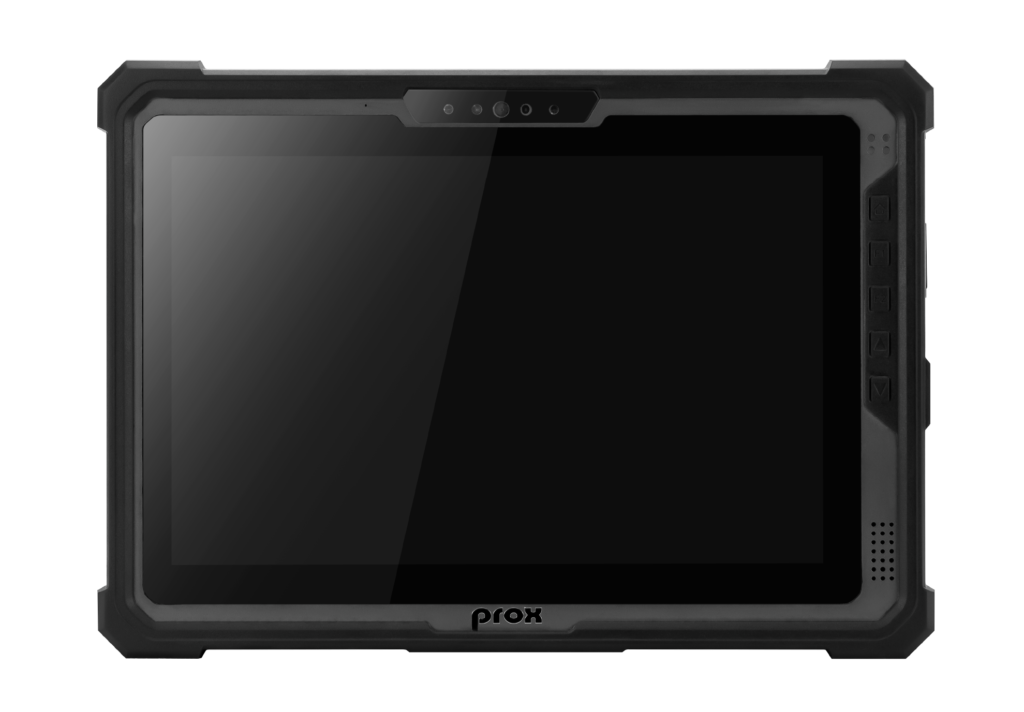

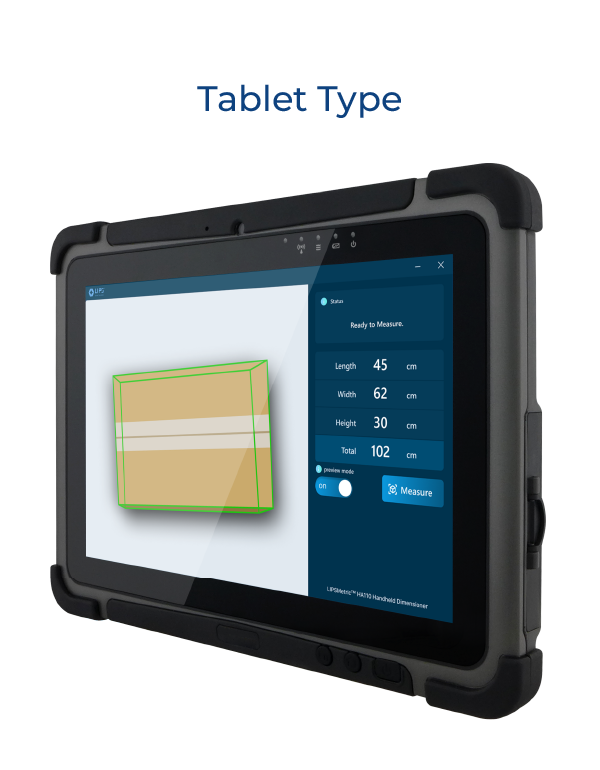

Tablet Type

Tablet Dimension Measurement

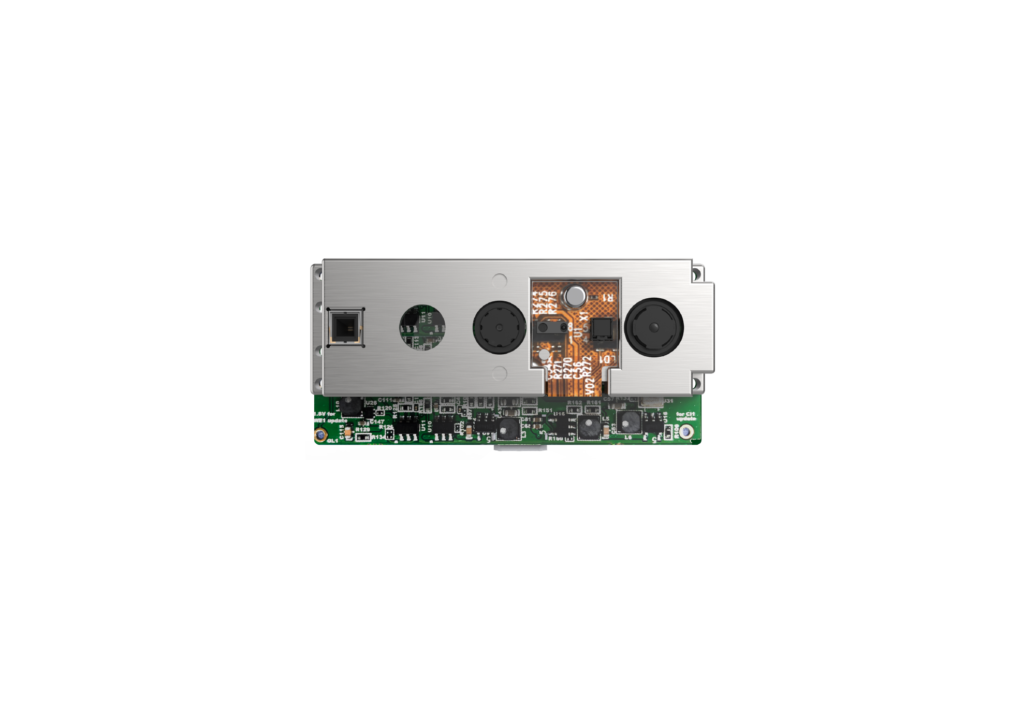

3D Structured Light Camera Module

Intelligent and Quick

Instant capture of underlying object with an instant shot

Flat, Round & Long

Box Dimension Measurement
Round Object Dimension Measurement
Long Object Dimension Measurement

Metal, Shiny and Wrapped

Metal, Shiny Surface Dimension Measurement
Dimension Measurement with Plastic Wrapping

Low Light
No Light Conditions

Low Light Dimension Measurement
No Light Dimension Measurement

Floor Detection and Identification

Identify floor with AI algorithm. No need for calibration

Freight Dimension Measurement

Moving Objects

Automatically outline object dimensions

with AI algorithm even when it’s moving

Machine Vision Dimension Measurement

Logistics, Warehouse, Retail and Manufacturing

Instant capture of underlying object with an instant shot

Warehouse Dimensioner


Warehouse space measurement


Pallet Dimensioner


Moving Object Dimensioner


Mobile, Portable Device Dimensioner


LIPSMetric™ includes Dimensional Weight Calculation

What is Dimensional Weight?

  • Dimensional weight is a formula used by carriers to determine the cost of shipping a package based on its volume.

  • It reflects a package’s volume, or the amount of space it occupies relative to its actual weight.

The Formula:

Dimensional Weight = (Length x Width x Height) / 5000


Unit: kg

dimension measurement

Use Case Scenarios

Automatically identify the floor and detect the object's dimension.

No calibration required.

Who uses Dimensional Weight?

2015 年には UPS、FedEx、USPS など多くの企業で採用されました。

United States Postal Service

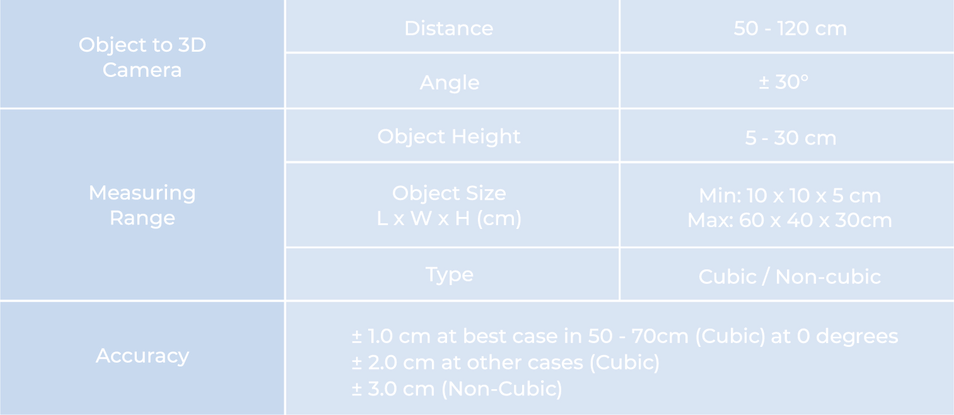

System Requirement

Camera Included

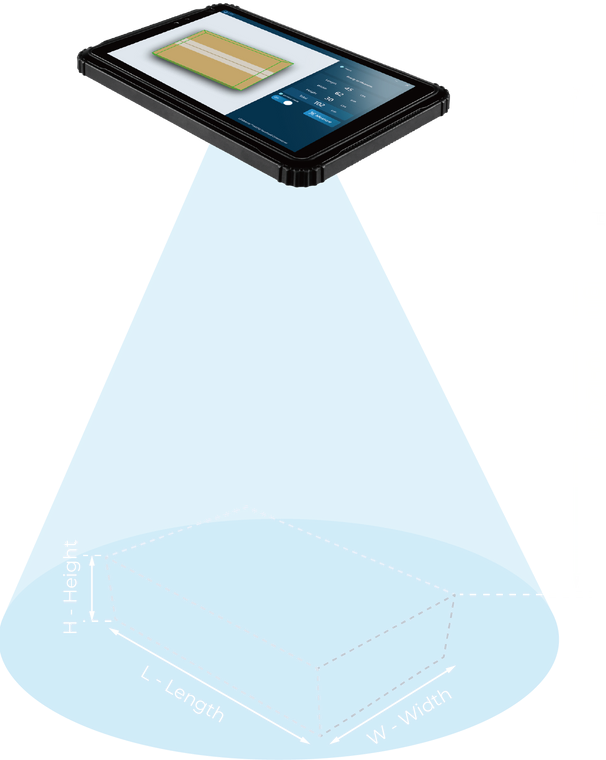

Object to 3D Camera

Measuring Range


Other requirements

Windows 10/ 11
Linux18.04 / 20.04
Android 10 on arm64 v8a CPU platform




Minimum Requirements:

Intel® Pentium® Gold 4415Y/4425Y/ or above



Panel Resolution 1280x720 or 1280x800

LIPSedge L215u/L210u

3D Structured Light Camera


50 - 120 cm

Object Height:

5 - 30 cm


Cubic / Non-cubic

±1.0 cm at best case in 50-70cm (Cubic) at 0 degree
±2.0 cm at other cases (Cubic)
±3.0 cm (Non Cubic)

USB 2.0 port or above
arm64-v8a for Android OS

For Performance Recommended:

Intel® Pentium® Gold 6500Y/ or above

RAM 4GB or above

SSD 64GB or above

Panel Resolution 1920x1200(or 1920x1280)


± 30°

Object Size L x W x H (cm):

Min: 10 x 10 x 5 cm

Max 60 x 40 x 30 cm

Handheld Dimensioner LIPSMetric HA110
