LIPSMetric™ HA110 Handheld Dimensioner

Measurement Made Easy

Dimension Measurement Anytime and Anywhere

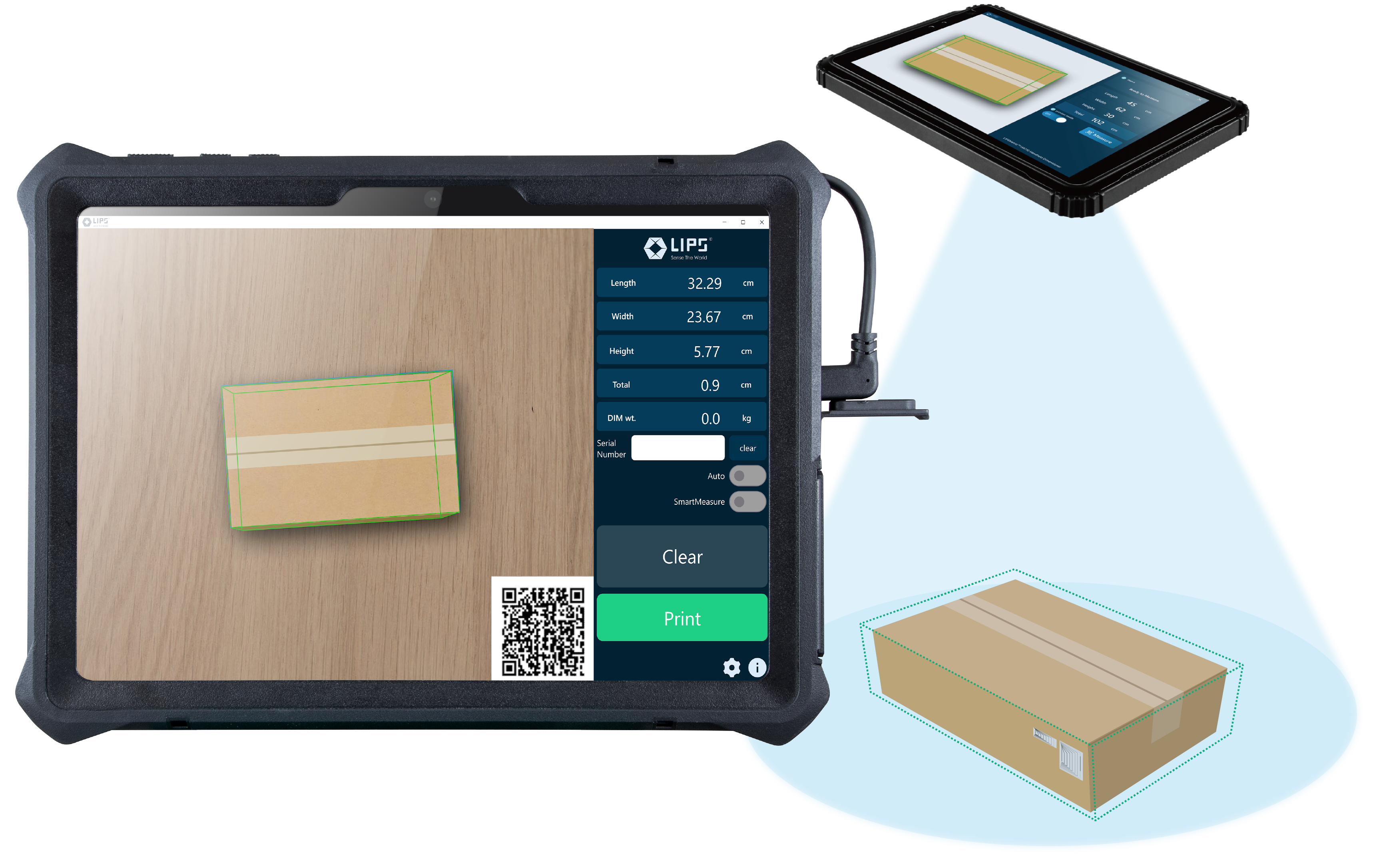

LIPSMetric™ HA110/115 Handheld Dimensioner is a 3D camera kit designed for handheld devices such as tablet, scanner, or PDA to integrate dimension measurement capability. The solution comes with LIPSedge™ L210/215 Structured-Light Camera and LIPSMetric Handheld Dimensioner application which allow the instant dimensioning of the underlying object. LIPSMetric™ HA110/115 Handheld Dimensioner can increase productivity for logistic, warehouse, retail, ecommerce, and manufacture operations.

The challenges

Measuring 1 package is easy. How about measuring 10, 100 or 1000 packages?

High Rate of
Human Errors

Low efficiency
of process

Labor costs increase
year by year

Equipment cost
too expensive

The solution based on Structured Light

The solution comes with LIPSedge™ L210u Structured Light Camera Module and LIPSMetric™ Handheld Dimensioner application which allow the instant dimensioning of the underlying object. Structured Light Technology is the best alternative for 3D depth measurement when it comes to precision and details

Cubic and Non-Cubic capable

A Tiny Module

A module of 54mm * 26.6mm * 14.3mm fits anywhere in existing tooling and housings

Intelligent and Quick

Instant capture of underlying object with an instant shot

Flat, Round & Long

Metal, Shiny and Wrapped

Low Light/No Light Conditions

Floor Detection and Identification

Identify floor with AI algorithm. No need for calibration

Moving Objects

Automatically outline object dimensions with AI algorithm even when it’s moving

Logistics, Warehouse, Retail and Manufacturing

Instant capture of underlying object with an instant shot

SHIPPING

SPACE MANAGMENT

PALLET

IN-MOTION

PORTABLE&MOBILE

LIPSMetric™ includes Dimensional Weight Calculation

What is Dimensional Weight?

Dimensional weight is a formula used by carriers to determine the cost of shipping a package based on its volume.
It reflects a package’s volume, or the amount of space it occupies relative to its actual weight.

The Formula:

Dimensional Weight = (Length x Width x Height) / 5000

Unit: kg

Use Case Scenarios

Automatically identify the floor and detect the object’s dimension.
No calibration required.

Who uses Dimensional Weight?

In 2015 it was adopted by UPS, FedEx, and USPS and many more

Specifications

OS

Windows 10 / 11

Linux18.04 / 20.04

Android 10 on arm64-v8a CPU platform

System Requirement

Minimum Requirements:

Intel® Pentium® Gold 4415Y/4425Y/ or above

RAM 4GB

SSD 64GB

Panel Resolution 1280x720 or 1280x800

For Performance Recommended:

Intel® Pentium® Gold 6500Y/ or above

RAM 4GB or above

SSD 64GB or above

Panel Resolution 1920x1200(or 1920x1280)

Camera Included

LIPSedge™ L215u/L210u
3D Structured Light Camera

Object to 3D Camera

Distance:

50 - 120 cm

Angle:

± 30°

Measuring Range

Object Height:

5 - 30 cm

Type:

Cubic / Non-cubic

Object Size L x W x H (cm):

Min: 10 x 10 x 5 cm

Max: 60 x 40 x 30 cm

Accuracy

±1.0 cm at best case in 50-70cm (Cubic) at 0 degrees

±2.0 cm (Cubic), at other cases

±3.0 cm (Non-Cubic)

Other requirements

USB 2.0 port or above

arm64-v8a for Android OS

Get it Today

We are now offering limited samples for early customer engagement.
