LIPSedge™ DL400

Modularized and Powerful Time-of-Flight

Enhanced All-purpose ToF camera with USB Plug & Play

DL400_01
DL400_02

LIPSedge™ DL400 is a versatile and ready-to-use 3D ToF camera that outputs both 2D and 3D data with high depth resolution in real-time. Works straight out of the box by plugging it to a host running Windows or Linux through USB 3.0 Micro-B interface, being the best suitable for applications including Machine Vision, Medical detections, AR/VR, Gaming and Smart Devices

Mid-Range Detection with Time-of-Flight

2 to 6 meters detection
The LIPSedge™  DL400  implements Time-of-Flight for use cases that require certain distances due to installation or privacy concerns
Time of flight sensors uses modulated light source to illuminate the scene. Observing the reflected light from scene, while it measures the difference in phase shift between illuminated signal and reflected signal and translates it to distance.

Short-to-Mid Range Detection with Time-of-Flight
Time-of-Flight distance measurement
DL4 | LIPS Corporation

Reach Wide and Broad with Edge Emitting Laser x 4

The LIPSedge™  DL400 integrates 4 units of Edge Emitting Lasers as its technology makes possible for use cases that require extended and amplified, wider and broader reach coverage

Posture Detection

  • Precision and Fast Response for Medical patient and Elderly care
  • ToF sensors provide a non-intrusive capture and detection
Posture Detection
ambient light conditions

Ambient Light Ease

Use ToF for 3D depth both low light and bright scenes as its technology gets unaffected by the ambient light conditions

Super Speed with USB 3.0

Transfer image and depth data 10 times faster Introducing two unidirectional data paths, SSRx+/SSRx- and SSTx+/SSTx-, which run in parallel with the existing D-/D+ data bus, USB 3.0 can transfer data  simultaneously 10 times faster than its predecessor.

Persistent Connection

Remain in the same session even after occasional disconnection
(<15 seconds) without restarting  Know more…

UVC e1703662871665 | LIPS Corporation

Plug & Play with UVC

Work straight out of the box by plugging the LIPSedge ™ DL400 to a host running Windows or  Linux through USB 3.0 Micro-B interface
Use standard UVC for instantly without integration bottlenecks

Application uses cases

Machine Vision for Density Inspection
smart elderly care
touchless gaming and entertainment

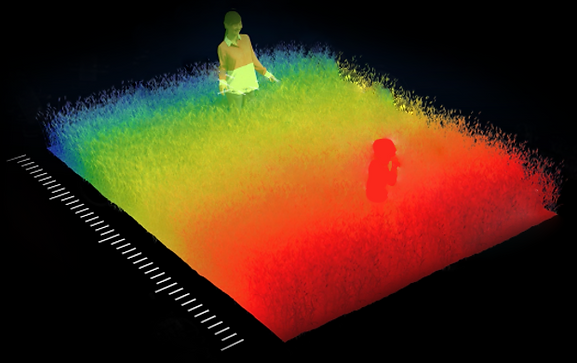

LIPSedge DL400 Point Cloud

Elderly Care

Body Skeleton

Start developing with LIPS

Our open‑source SDK 2.0 offers a variety of wrappers supporting popular programming languages and platforms

Documentation

Get Started

User Manual

Software






GitHub

Specifications

Brochure
Datasheet

Depth

Technology:

Time-of-Flight

Min. Working Distance:

0.16 m

Frame Rate:

320x240 @ 30fps (Native)

Z Accuracy:

≤3%

*The Accuracy will vary with disance.

FoV (H x V x D):

74.1° x 57.5° x 92°

Aperture:

f/1.2

Operating Range:

Normal Mode: 2 ~ 6m

RGB

Resolution:

1920x1080 @ 25 fps

2592 x 1944 @ 10fps

FoV (H x V x D):

75.4° x 60.1° x 88.9°

Illumination

Type:

Edge Emitting Laser x 4

Wavelength:

850nm

General

Dimension (mm):

133 x 36 x 29 mm

Storage Temperature:

-20 ~ 60˚C

Power:

16W

Operating Temperature:

0 ~ 40˚C

Ambient Temperature:

0 ~ 40˚C

Interface:

USB 3.0 Micro-B

Output Format​

RGB:

YUV / RGB24 / MJPEG

Depth:

16 bits

SDK

OpenNI 1.5 / 2.2, OpenCV

OS

Windows 10

Ubuntu 16.04 / 18.04 LTS

Language Support​

C / C++

Environment

Indoor

| LIPS Corporation

Get it Today

We are now offering limited LIPSedge™ DL400 samples for early customer engagement. Contact us to get your sample today!
