LIPSedge™ L210u/L215u

Compact, Accurate and Powerful

High-Res Structured-Light Camera

LIPSedge L210u 3D structured light camera

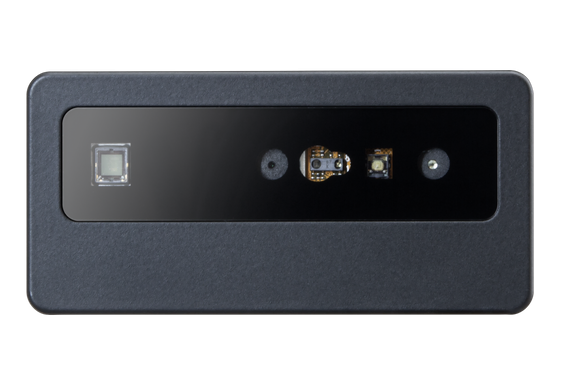

LIPSedge L215u 3D structured light camera

LIPSedge™ L Series is the most compact 3D structured light camera on the market today with big features. The LIPSedge L210u/L215u 3D structured light cameras, with up to HD resolution, high precision (≤ 0.3% @100cm), and 940nm wavelength VCSEL light source can be used indoors and outdoors. Supports short-range 3D sensing applications such as 3D scan, 3D facial recognition, 3D measurement, and visual defect inspection.

Precise and Accurate

Up to 0.3% @ 100cm accuracy and great for 3D scan, 3D measurement, and 3D facial recognition

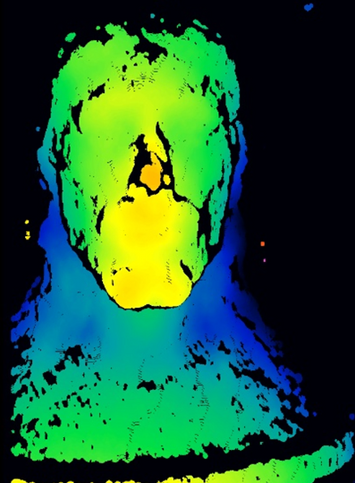

Conventional Stereo

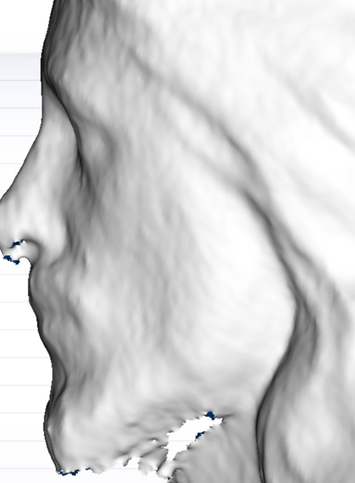

Conventional Stereo image

LIPSedge™ L210u /L215u

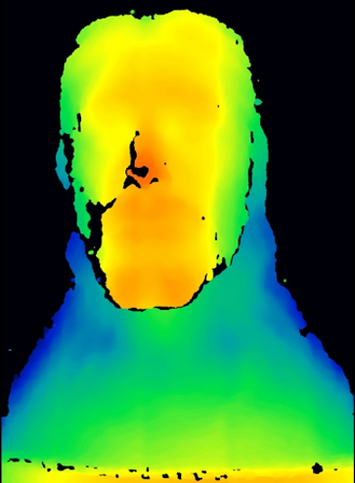

LIPSedge™ L210u /L215u image

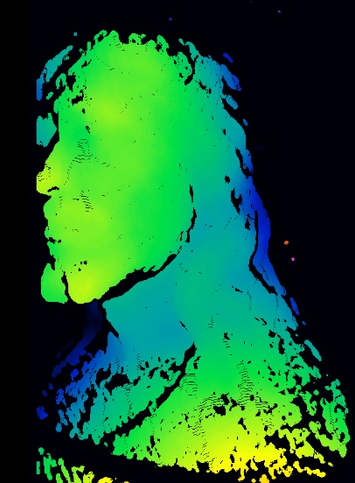

Conventional Stereo

Conventional Stereo image

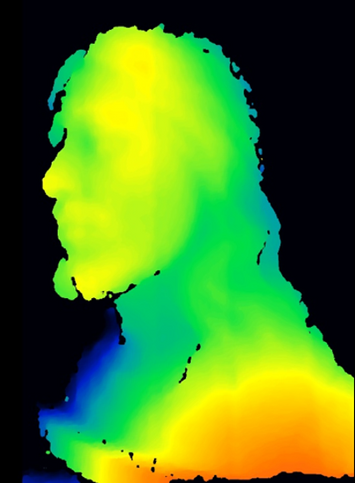

LIPSedge™ L210u /L215u

LIPSedge™ L210u /L215u image

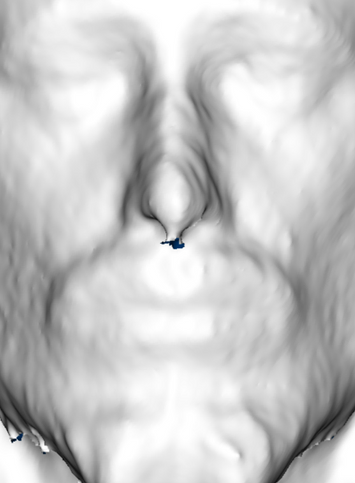

Conventional Stereo

stereo 3 | LIPS Corporation

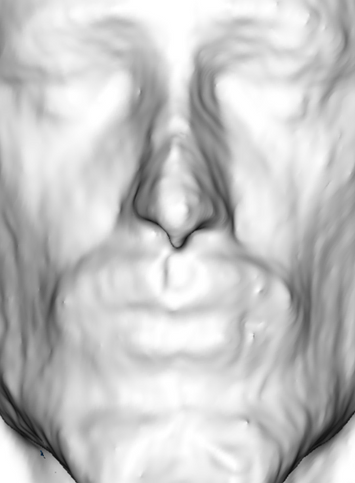

LIPSedge™ L210u /L215u

LIPSedge™ L210u /L215u image

Conventional Stereo

Conventional Stereo image

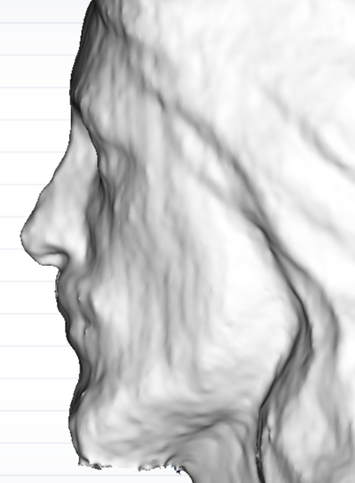

LIPSedge™ L210u /L215u

LIPSedge™ L210u /L215u image

Global Shutter

The LIPSedge™ L210u/L215u uses Global shutter technology in which an image sensor’s pixels to start exposing and stop exposing simultaneously for every image capture. Such technology is best and suitable for high-speed moving objects with an output without any motion blur.

470 | LIPS Corporation

Sunlight Resistance up to 80K

Supporting 940nm wavelength VCSEL light source can be used indoors and outdoors.

outdoor sunlight | LIPS Corporation
indoor light

Precision with VCSEL Technology

The LIPSedge™ L210u/L215u design adopts VCSEL Technology which allows precise and Depth precision with narrow beams, making possible high output and accuracy

precise and Depth precision with narrow beams
laser light source type

Build Once, Deploy Unlimitedly

Cross-platform OS support on Windows & Linux.
Cross-platform Hardware support on Intel and Nvidia

build once4 | LIPS Corporation
sdk3 | LIPS Corporation

Developer Friendly

  • LIPSedge™ supports widely used industrial 3D framework including ROS, OpenCV, OpenNI, Nvidia Isaac, Halcon as well as LIPS strong middleware portfolio.
  • Develop applications with LIPSedge ™ using friendly and universal languages with LIPS ® samples code including C++, C# and Python

Scalable Solutions

Integrate L210u and L215u into different Application Use-cases

LIPSMetric®
Handheld Dimensioning

LIPScan®
3D Scan SDK

LIPSFace®
3D Facial Recognition

LIPSedge L210u/L215u Point Cloud

LIPSedge L210u/L215u Point Cloud in 3D Viewer

LIPSMetric Handheld Dimensioner Solution with LIPSedge L210u 3D Structured-Light Camera

Start developing with LIPS

Our open‑source SDK 2.0 offers a variety of wrappers supporting popular programming languages and platforms

Documentation

Software

Specifications

Brochure
Datasheet

Depth

Technology:

Structured Light

Max. Working Distance:

1.2 m

Frame Rate (USB Output):

1280x800@6fps, 640x480@25fps

FoV (H x V):

50.7° x 74.2° (+/-2°)

Z Accuracy:

0.3% @ 100cm

Min. Working Distance:

0.4 m

Shutter Type:

Global Shutter

RGB

Resolution:

1280x800/6fps (YUV)

640x480/25fps (YUV)

Shutter Type:

Rolling Shutter

FoV (H x V x D):

H:45.89°@UXGA, 38.86°@720p, 45.89°@VGA

V: 58.89°

Illumination

Type:

Infared

Illuminating Component:

Vertical-cavity surface-emitting laser (VCSEL)

Wavelength:

940nm

General

Dimension (mm):

L210u Module: 54.0 x 25.0 x 11.3mm

L215u Case: 63.0 x 30.2 x 17.0mm

Storage Temperature:

-20 ~ 60˚C

Power:

USB Power-in, DC 5V/1A

Weight(g):

L210u Module: 16.4 g

L215u Case: 85 g (approximately)

Ambient Temperature:

0 ~ 40˚C

Output Interface:

Micro USB (USB 2.0)

SDK

Multiple Frameworks supported:

OpenNI, NVIDIA Isaac, ROS

OS

Windows 10

Ubuntu 16.04 / 18.04 LTS

Environment

Indoor

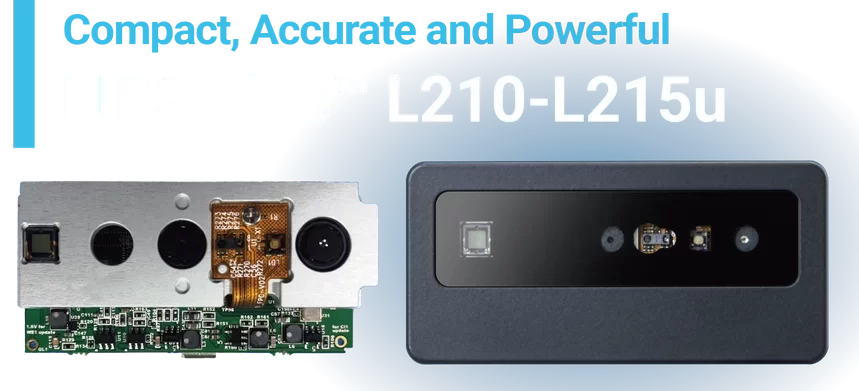

LIPSedge™ L210u/L215u 3D Structured-Light Camera

Get it Today

LIPSedge™ L210u/L215u are currently on sale. Click link below to get your sample today!
