LIPSedge™ M3 LED

Mini Size, Precise Position and Location

All-purpose ToF camera with USB Plug & Play

GT2.M3 新 | LIPS Corporation

LIPSedge™ M3 LED is an innovative 3D Modular Camera targeting embedded systems and has built-in IMU that allows for interactive applications. Benefit from implementing for use-cases such as Gesture Control, People Counting, Behavior Analysis, Digital Signage, or Elevator Capacity Measurement.

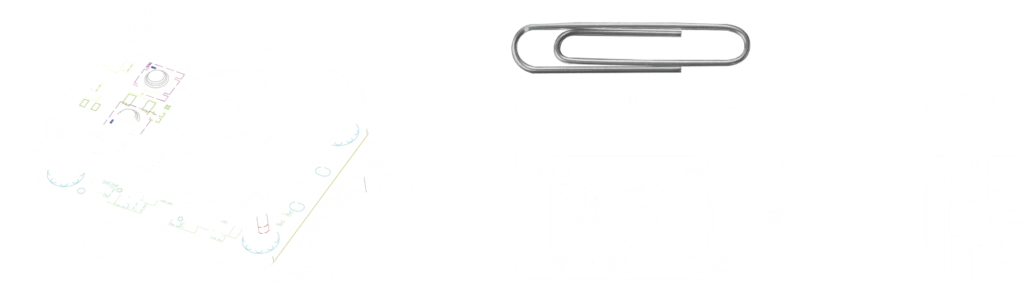

A Tiny Module

The LIPSedge ™ M3 LED is a tiny module with TOF technology ready-to-integrate to applications that demand space fitting

LIPSedge ™ M3 LED Tiny Module

Mid Range Detection

20cm to 4 meters detection

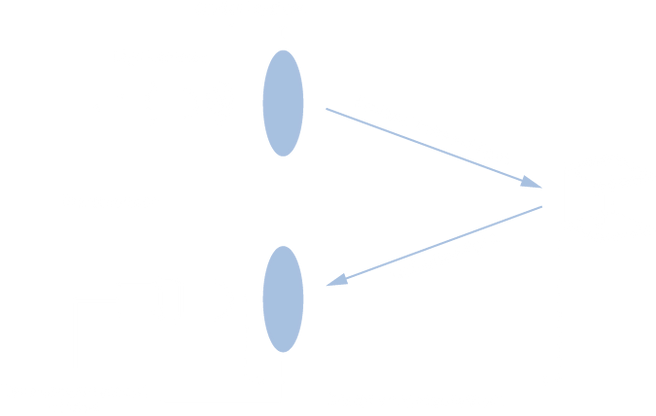

The LIPSedge™  M3 LED implements Time-of-Flight for devices that are located from a certain distance. Time of flight sensors use modulated light source to illuminate the scene. Observing the reflected light from scene, while it measures the difference in phase shift between illuminated signal and reflected signal and translates it to distance.

Short-to-Mid Range Detection with Time-of-Flight
Time-of-Flight distance measurement
m3 imu | LIPS Corporation

An IMU inside

The LIPSedge ™ M3 LED comes with a built-in 6 axis Inertial Measurement Unit, which allows precision and accuracy for its position and movement location details.

Ambient Light Ease

Use ToF for 3D depth both low light and bright scenes as its technology gets unaffected by the ambient light conditions

ambient light conditions
motion gesture | LIPS Corporation

For Gesture and Motion

Precision and Fast Response for Motion Gesture based on 3D Depth

Build Once, Deploy Unlimitedly

Cross-platform OS support on Windows, Linux, Raspberry Pi
Cross-platform Hardware support on Intel and Nvidia

build once3 | LIPS Corporation
sdk3 | LIPS Corporation

Developer Friendly

  • LIPSedge™ supports widely used industrial 3D framework including ROS, OpenCV, OpenNI, Nvidia Isaac, Halcon as well as LIPS strong middleware portfolio.
  • Develop applications with LIPSedge ™ using friendly and universal languages with LIPS ® samples code including C++, C# and Python

Persistent Connection

Remain in the same session even after occasional disconnection (<15 seconds) without restarting

Know more…

persistent Connection2 | LIPS Corporation

Application uses cases

smart retail
Elevator Density Measurement
People Counting
information screen shopping mall

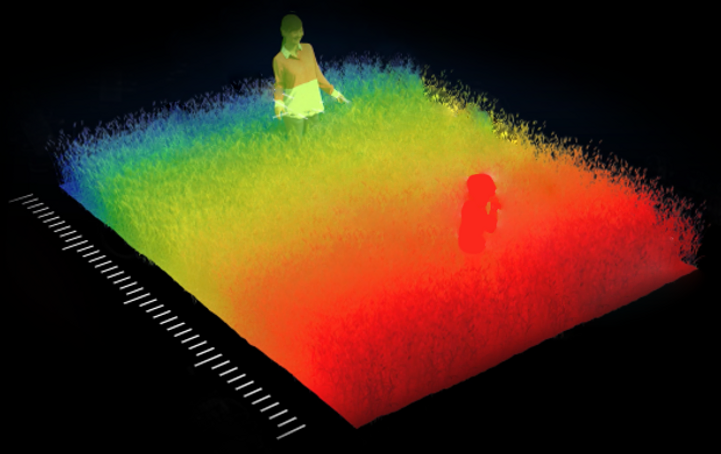

LIPSedge ™ M3 Point Cloud and Motion Gesture​

Point Cloud

LIPSense 3D Motion Gesture

Start developing with LIPS

Our open‑source SDK 2.0 offers a variety of wrappers supporting popular programming languages and platforms

Documentation






Software






Specifications

Brochure
Datasheet

Depth

Technology:

Time-of-Flight

Frame Rate:

80 x 60 @ 30fps (Native)

Z Accuracy:

≤3% Typical

*The Accuracy will vary with disance.

FoV (H x V x D):

74.1° x 57.5° x 92°

Aperture:

f/1.2

Operating Range:

Near Mode: 0.2 ~ 1.0m

Normal Mode: 1 ~ 4m

Inertial Measurement Unit

6-axis sensor:

3-axis accelerator & 3-axis gyroscope

Illumination

Type:

LED x 2

Wavelength:

850nm

General

Dimension (mm):

51 x 28 x 22.4 mm

Interface:

USB 2.0 Micro-B

Power Consumption:

4W

Operating Temperature:

0 ~ 40˚C

Storage Temperature:

-20˚ ~ 60˚C

SDK

OpenNI 1.5 / 2.2, OpenCV

OS

Windows 10

Ubuntu 16.04 / 18.04 LTS

Language Support​

C / C++

Environment

Indoor

LIPSedge M3 LED

Get it Today

You can now buy the LIPSedge™ M3 LED sample directly from LIPS official store and jump start your development today!
