LIPSedge™ F110 3DxAI Edge Accelerator​

Empowering next-generation 3D Vision and A.I.​

World’s 1st NVIDIA AGX Xavier based PCIe PoE+ Endpoint-Mode Edge Accelerator

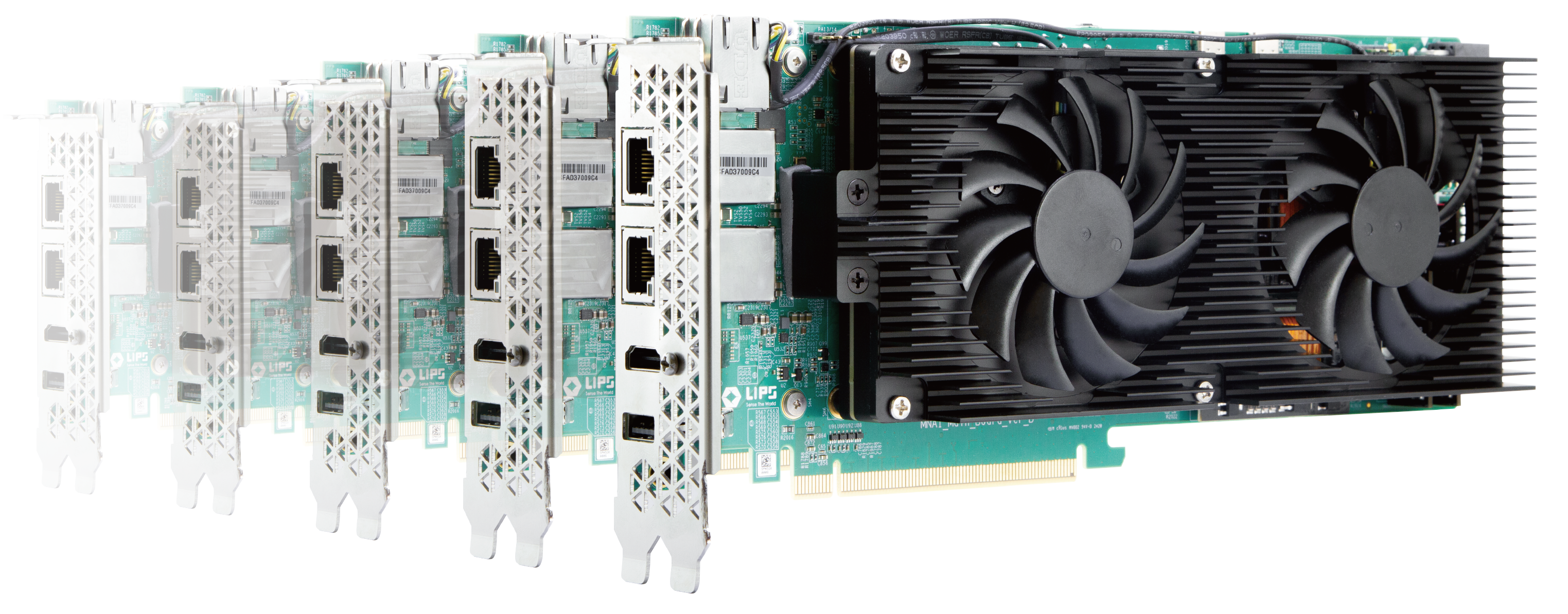

LIPSedge f110
GiGE Vision
genicam logo
Cleverboot
PCI Express 4.0 Endpoint
NVIDIA CUDA
NVIDIA GPUDirect RDMA
PoE+

■ Industrial Ready Edge Accelerator for GigE/ PoE RGB-D Camera with GenICam

■ PoE+ 2 ports with PSE

■ PCIe Endpoint Mode

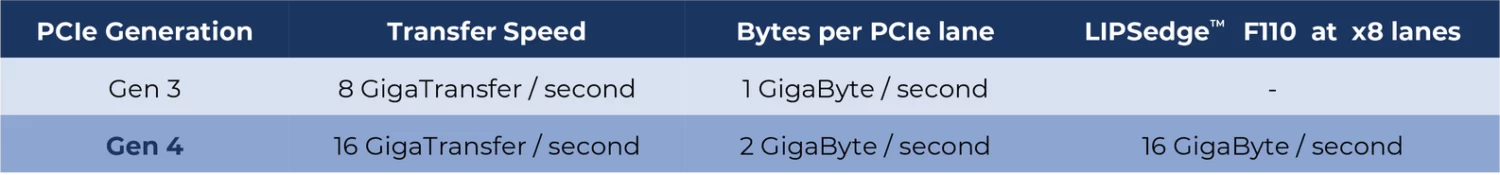

○ High Bandwidth with PCIe 4.0
○ Low Latency Transmission with GPUDirect via RDMA
○ Scale-Up Architecture for Robotics Vision with x86
○ Cleverboot™ Interconnect for Multi-OS Systems
○ Edge Computing with NVIDIA® CUDA and OpenCL

■ Accelerate 3D Point cloud De-noise, Stitching & Fusion

■ Compatible with LIPSedge™ 3D Camera and SDK Wrappers

○ Extended Library Support from Nvidia ISAAC, Jetson Jetpack SDK and more

■ Root Port Deployment from single lane to multi-lanes

Why Do You Need

LIPSedge™ F110 3DxAI Edge Accelerator?

| LIPS Corporation

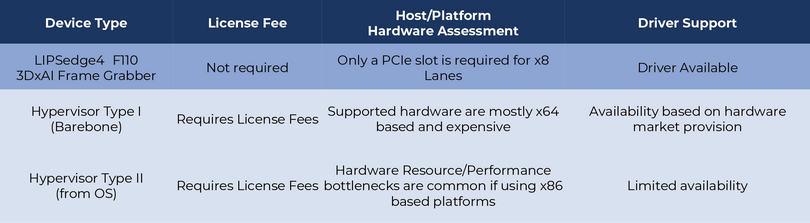

√ Taking the Best of Both Worlds on x86 and Nvidia Jetson

  • Run x86 applications such as ROS & ROS2 while taking advantage of the parallel computing & deep learning capabilities of Nvidia Jetson


√ Designed to Scale and Accelerate 3D Vision Applications

  • The 3D vision application today often requires a dedicated IPC to process even a single 3D camera stream
  • LIPSedge™ F110 3DxAI Edge Accelerator allows a single system to scale-up & pre-process multiple 3D camera streams while performing AI inference and keeping the CPU utilization low
GigE/ PoE RGB-D Camera with GenICam

Industrial Ready for GigE/ PoE RGB-D Camera with GenICam

Two independent ports transferring up to 2.5 Gb/s per port

PoE+ 2 ports with PSE

  • No power adapter required for LIPSedge™ AE series cameras
  • Robust 30 watts PSE: Balance, Stability and Performance
  • Protection against:
    • Over-current
    • Over-voltage
    • Short-circuit
    • Over-temperature
F110 PoE+ 2 ports with PSE

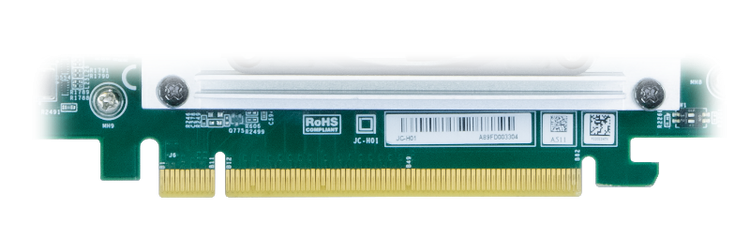

PCIe Endpoint Mode Low Latency Architecture

Run as Endpoint mode that allows High-bandwidth, Low-latency transfer of data with GPUDirect RDMA enabled.

LIPSedge™ F110 3DxAI Edge Accelerator takes 3D depth capturing and edge-AI to the next level while reducing costs,

simplifying installation, and easing maintenance burden for deployment.

PCIe Endpoint Mode Low Latency Architecture

LIPS® Proprietary Algorithm for 3D Point cloud De-Noise & Fusion

Depth/Color Maps to Point cloud Conversion and Alignment
  • Image alignment from depth-map to color-map
  • De-project to point cloud from depth and color maps
Point cloud Filters
  • Passthrough Filter for Point cloud
  • Voxel Grid Filter for Point cloud
  • Radius Outlier Removal Filter for Point cloud

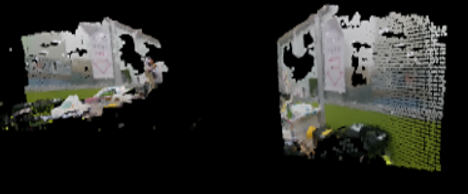

3D Point cloud

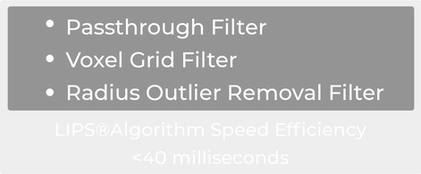

LIPS® Proprietary Algorithm

LIPSedge™ 3D Camera family compatibility with SDK & Wrappers

LIPSedge™ 3D Camera family compatibility with SDK & Wrappers

Use Case Scenario

LIPS® Low Latency 3D Robotic Vision Solution

Low Latency 3D Robotic Vision Solution

LIPSafeguard™ Robotic Safety Solution Designed for Collaboration

LIPSafeguard™ Robotic Safety Solution

LIPSedge™ F110 3DxAI Edge Accelerator Installation & Deployment

Start developing with LIPS

Our open‑source SDK 2.0 offers a variety of wrappers supporting popular programming languages and platforms.

Documentation

Get Started

User Manual

Software

SDK

Firmware

Release History






GitHub

Windows SDK

Linux SDK



Specifications

Brochure
Datasheet

Module Support​

Module:

NVIDIA Xavier AGX 32GB

Internal I/O Physical

HDMI:

1x HDMI type A

LAN:

1x 1000Base-T RJ-45 (optional)

2x 2.5Gbase-T RJ-45 supports POE 802.3at

Fan connector:

1x 4-pin fan connector

Expansion slot:

1x M.2 M key PCIe only

Pin header:

40-pin pin header

(5x GPIO, 1x I2C, 1x Debug UART)

Optional function​

Boot sequence control:

Build-in MCU to control boot sequence

TPM:

TPM 2.0

Storage

Storage:

Micro SD.

Board Dimension

Power Input :

9~19V DC input

Power Input

Dimension (mm):

254 x 111 x 54 mm

OS

Supported OS:

Linux Ubuntu 18.04 LTS / 20.04 LTS

Environment

Humidity:

10 ~ 90% @ 40°C, (non-condensing)

Storage Temperature:

-45°C ~ 80°C

Operating Temperature:

-25 °C ~ +80°C

LIPSedge™ F110 3DxAI Edge Accelerator

Get it Today

We are now offering limited samples for early customer engagement.

Contact us to get your sample today!
