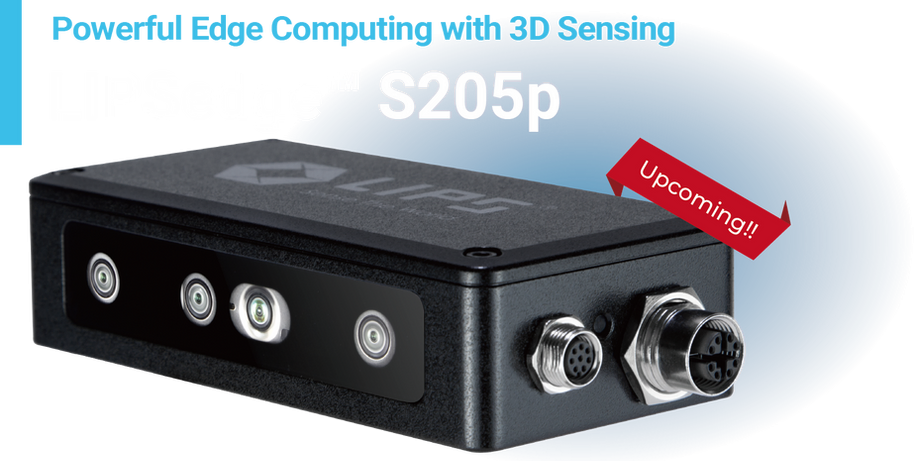

LIPSedge™ S205p

Powerful Active Stereo with Ambarella CV2 Edge Computing

Long Range High-Resolution 3D Stereo Camera with RGB

3D Stereo Camera with Edge Computing LIPSedge S205p

LIPSedge™ S205p is the next-generation 3D stereo camera that can support up to 720p high-resolution RGB-D to support applications that require the combined capabilities of 2D and 3D machine vision. Featured with wide FOV, long range and excellent accuracy, includes a global shutter sensor and built-in IMU for high-motion robotics and applications. LIPSedge™ S205p integrates an Ambarella CV2 CVflow® SoC with high performance edge AI processing capabilities and is available in both consumer and industrial application

Ambarella CV2 CVflow SoC

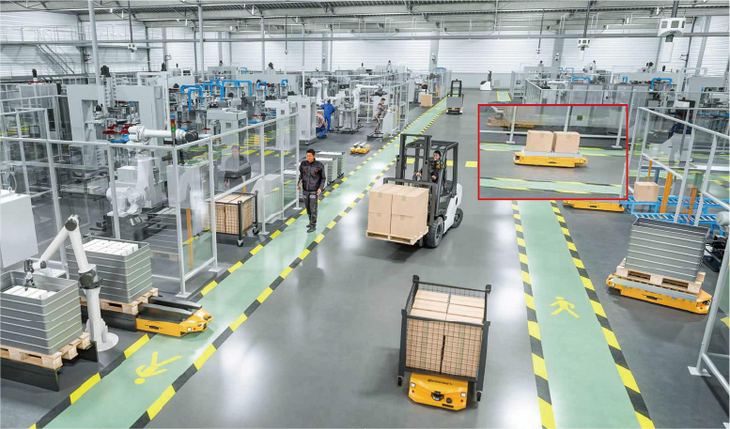

Long Distance Range

The LIPSedge™ S205p is best suitable for detections that require long distances and enhanced range 3D depth mapping

High Performance  with Ambarella® CV2 Edge Computing

Run applications on Edge with 10nm technology on Ambarella’s CV2 CVflow® SoC. Delivering  industry-leading image processing, high resolution video encoding, and an optimized CVflow® computer vision architecture for high-performance

long range 3D camera depth

Near-Infrared in Image Sensor

Near-infrared sensing enables high sensitivity to near-infrared light for effective zero-light imaging, improving clear visibility for 3D depth mapping

clear butterfly image using near-infrared technology

Near-infrared Technology produces clear images in low-light conditions

blurry butterfly image in low light without near-infrared technology

Without NIR, images are blurry in low light

Global Shutter

The LIPSedge™ S205p uses Global shutter technology in which an image sensor’s pixels to start exposing and stop exposing simultaneously for every image capture. Such technology is best and suitable for high-speed moving objects with an output without any motion blur.

liquid splatter image using high-speed image capture
vision guided robot arm
CMOS image sensor

CMOS Image Sensor

Global Shutter

Precision with VCSEL Technology

The LIPSedge™ S205p design adopts VCSEL Technology which allows precise and Depth precision with narrow beams, making possible high output and accuracy

3d camera light output structure
3d camera laser light type, LED, Laser, VCSEL
1280x800 pixel high resolution HD RGB output

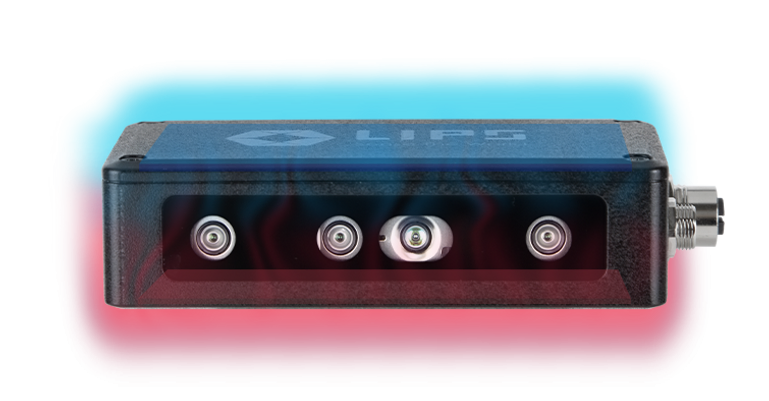

Built-in Heatsink

  • Built-in heatsink allows heat to dissipate easily from the camera body while ensuring long periods of operation without interruption

  • No external heatsink required

IP67 class protection

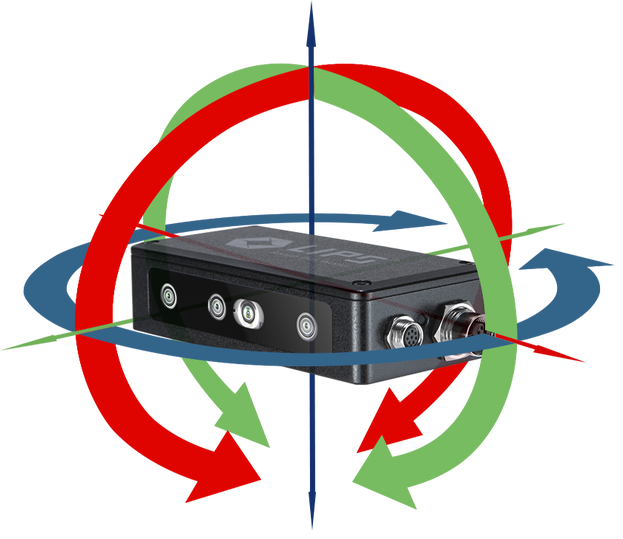

An IMU inside

The LIPSedge™ S205p comes with a built-in 6 axis Inertial Measurement Unit (IMU), which allows precision and accuracy for its position and movement location details.

PoE connection
remain PoE connection

Build Once, Deploy Unlimitedly

Cross-platform OS support on Windows & Linux.

Cross-platform Hardware support on Intel and Nvidia

Nvidia ISSAC
Microsoft .NET logo
VB logo
Python logo

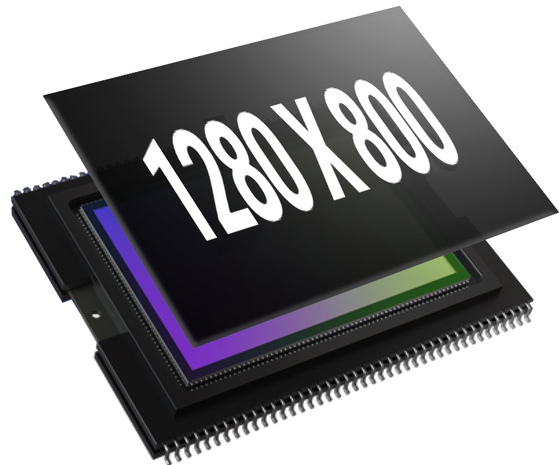

HD RGB Output

Selective single output of RGB at HD Resolution with 1280x800 pixels for applications that require clear image quality and sharpness

heatsink for 3d camera


LIPSedge™ S205p is an IP67 class device that comes for protection against water and dust

Inertial Measurement Unit for 3D Camera

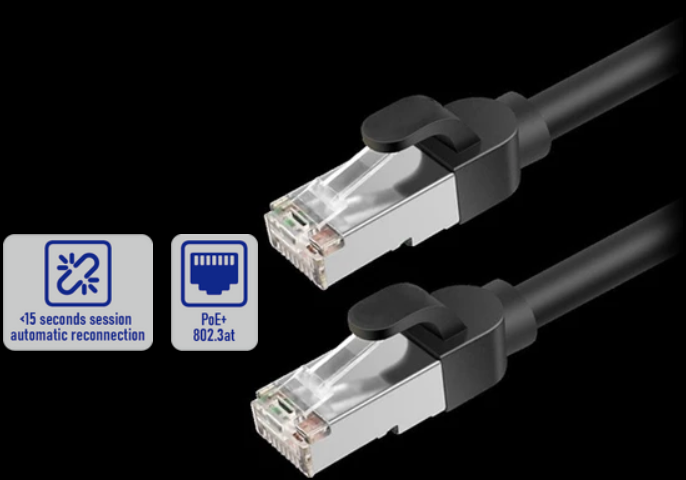

Persistent PoE Connection

  • Supports GigE with PoE that allows data transmission and power supply (802.3 at) up to 100 meters

  • Remain in the same network session even after occasional disconnection (<15 seconds) from the network without restarting

3D depth camera lens

Developer Friendly

  • LIPSedge™ S205p supports widely used industrial 3D framework including ROS, OpenCV, OpenNI, Nvidia Isaac, Halcon as well as LIPS strong middleware portfolio.

  • Develop applications with LIPSedge™ S205p using friendly and universal languages with LIPS ® samples code including C++, C# and Python

Application use-cases

Intelligent surveilance, smart monitoring, people counting

Start developing with LIPS

Our open‑source SDK 2.0 offers a variety of wrappers supporting popular programming languages and platforms.





IMU Sensor

A.I. Processor for Edge Computing





Active Stereo

Ideal Range:

6 meters

Frame Rate:


FoV (H x V x D):

87° x  58° x 95°


1280 x 800 @ 30fps

Shutter Type:

Global Shutter



Illumating Component:

Vertical-cavity surface-emitting laser (VCSEL)

3-axis accelerator & 3-axis gyroscope

Ambarella CV2® : Quad-Core ARM® Cortex® A53 up to 1.0Ghz with CVflow® Processor for Deep Learning

Dimension (mm):

130 x 32 x 66 mm

Ambient Temperature:

0 ~ 40˚C


PoE(IEEE 802 af/at)

Windows 10
Ubuntu 18.04 / 20.04 / 22.04 LTS

Indoor / Outdoor



Min. Working Distance:


Shutter Type:

Global Shutter

Z Accuracy:


FoV (H x V x D):

90° x 65° x 98°




320 g (unit only), 526 g (with Packing)

Storage Temperature:

-20 ~ 60˚C

Output Interface:

M12 x code

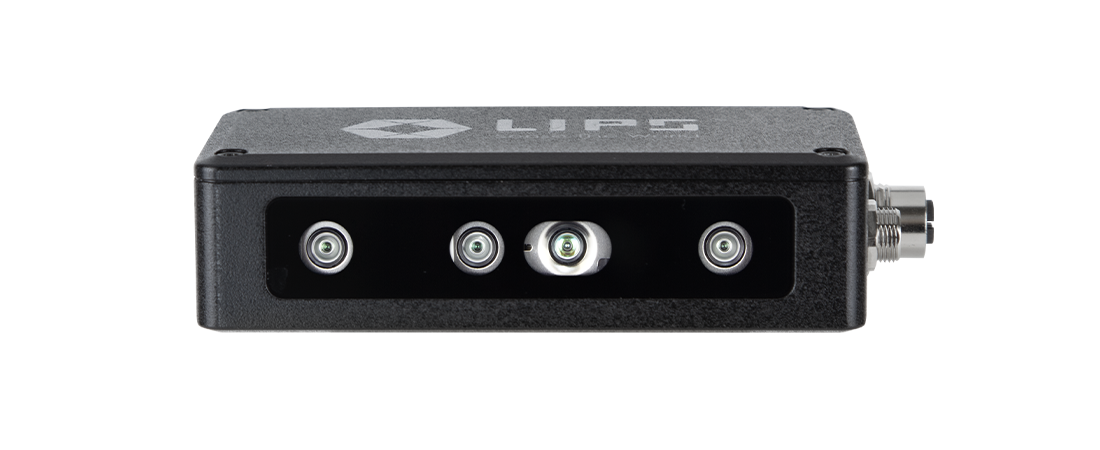

LIPSedge S205p 3D Stereo Camera with Edge Computing
