LIPSedge™ AE470

Half the Size & Weight. Big Performance!
Long-Range Industrial Stereo Camera

Compact & Light-weight Ruggedized 3D Stereo Camera
for Robotics & Edge-AI with Enhanced Range

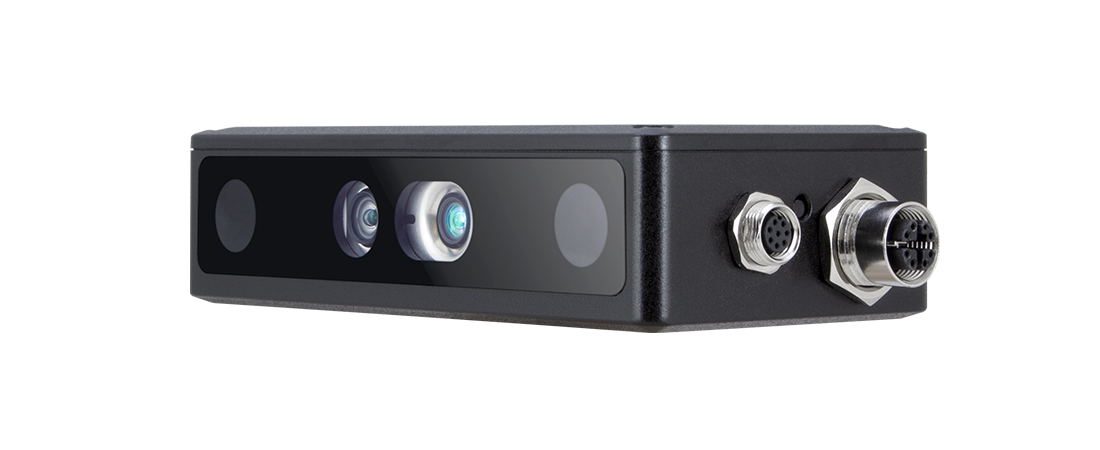

LIPSedge AE470 3D Stereo Camera

From the LIPSedge AE series, the LIPSedge™ AE470. With less than 300 grams of weight, compact form factor, GigE/PoE support, edge-AI SOC, and IP67 dust & water-proof.

LIPSedge™ AE470 is an excellent 3D camera choice for the robotic hand-eye and factory automation, and many other applications which require also long-range distances captures and detection.

Highest Depth Quality per Degree with Active Stereo

With Highest Depth Quality per degree, Powered by RGB-D sensor with Active Stereo Tech

LIPSedge™ AE Series is an active-stereo camera with inherent advantages such as better sensing for metal surface, better performance in short range, and provides higher resolution.

Glass surface

Glass Surface

Background up to 8m in distance

Long Distance Background

High Contrast Noise scenes

High Contrast Noise Scene

Ceiling with LED reflection

Ceiliing with LED reflection

Outdoor Light Conditions

3D Camera Outdoor

Global Shutter

The LIPSedge™ AE470 uses Global shutter technology in which an image sensor’s pixels to start exposing and stop exposing simultaneously for every image capture. Such technology is best and suitable for high-speed moving objects with an output without any motion blur.

Depth Resolution

 720P @ 30 FPS          480P @ 60 FPS

Global Shutter Technology
Robot Arm
CMOS Image Sensor

CMOS Image Sensor

Global Shutter

An IMU inside

The LIPSedge ™ AE470 comes with a built-in 6 axis Inertial Measurement Unit, which allows precision and accuracy for its position and movement location details.

Robot Arm Hand Eye
IP67 Compliant
Resist Scratch
Hard Case
M12 Locked Cable

10+ Meters Long Range

The LIPSedge™ AE470 is best suitable for detections that require long distances and enhanced range 3D depth mapping

3D Camera with Inertial Measurement Unit

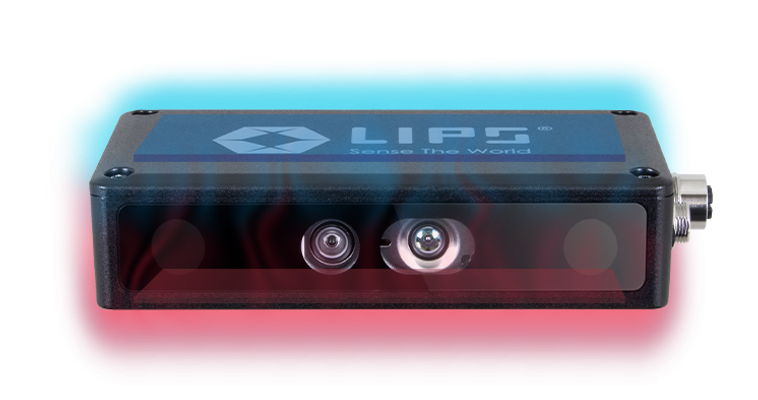

Built-in Heatsink

  • Built-in heatsink allows heat to dissipate easily from the camera body while ensuring long periods of operation without interruption

  • No external heatsink required

Reconnect function
Power over Ethernet

Open-root with Edge Computing

Run neural network applications at 5.0 TOPS with edge-AI SOC as open-root

3D Depth Camera Len

Develop Code Simply

  •  Develop applications with LIPSedge ™ AE470 using friendly and universal languages with LIPS samples code including C++, C# and Python

  • LIPSedge™ AE470 supports widely used industrial 3D framework including ROS, OpenCV, OpenNI, Nvidia Isaac, Halcon as well as LIPS strong middleware portfolio.

Industrial Ready

LIPSedge™ AE470 features compact form factor (135 x 100 x 42mm), light-weight body (280g), and ruggedized casing (IP67 compliant) and can satisfy strict limitations in robotic arm carrying weight. It provides fast and tight PoE connectivity with M12 locked-cable to withstand robotic arm twists and turns.

3D Camera Small form
Durable casing
Long Range Environment

An IMU inside<
