LIPSMetric™
車輛尺寸量測

更聰明的車輛尺寸量測，更好的管理掌控。

LIPSMetric™ 車輛尺寸量測系統採用AI 驅動的 3D 深度感測技術，結合 LIPSMetric™ MeasureMaster Suite，可即時擷取車輛的長、寬與高，並同時支援即用型應用與彈性的 SDK 整合。系統可實現精準的出入口控管、停車空間利用最佳化，以及依車輛尺寸進行的計費機制，全流程自動化，無需人工量測。

Automated vehicle detection system showing a white electric car enclosed in a green bounding box as it enters a parking garage and passes a yellow boom barrier.

概覽

流程

應用

比較

規格

常見問題

聯絡我們

停止猜測，開始規模化營運

傳統場域每天都在因為「看不見真實的車輛數據」而流失營運收益。
LIPSMetric™ VD115 車輛尺寸量測系統可將您的場域轉化為高精度的數位資產。

"High-angle view of a multi-level parking garage featuring AI-driven vehicle detection, where LIPS 3D depth camera technology utilizes dynamic red and cyan bounding boxes to monitor parking space occupancy and manage smart traffic access control."

看不見的營運風險

因人工判斷失準，超高車輛撞擊天花板或管線，導致維修成本最高增加40%

入口瓶頸效應

人工車輛尺寸檢查流程，導致每日入口作業時間額外耗費約60分鐘

停車位資源浪費

將小型車停放於 SUV 車位，導致高達12%的停車容量流失

幽靈佔位問題

系統僅能判斷「是否有車」，卻無法識別實際車輛尺寸，導致駕駛繞行卻找不到合適車位

動態中的精準量測：LIPSMetric™ 車輛尺寸量測流程

透過四個無縫步驟，體驗工業級 3D AI 技術如何從車輛偵測一路延伸至資料整合，兼顧速度、精度與耐用性。

偵測與擷取

工業級 3D 視覺，實現可靠的車輛偵測。

具備 IP67 防護與全域快門的 AE450 相機透過 GigE/PoE 擷取小客車資料，並可選配 Trigger、PLC 或 ANPR 整合。

IP67 戶外防護多相機擷取
小客車通過停車場入口的多相機 3D 偵測區
停車場入口相機 01–03

處理與量測

邊緣 AI 將 3D 資料轉換為車輛尺寸。

搭載 Linux JetPack 的 NVIDIA Jetson AGX 可同步多台相機、建立點雲、重建車輛輪廓，並即時計算長／寬／高。

即時邊緣 AI高解析度點雲
以點雲重建小客車並顯示長、寬、高量測軸
邊緣運算3D 輪廓

量測與驗證

專為精準度打造的 AI 量測軟體。

MeasureMaster 驗證長／寬／高、底盤高度與車型分類，並記錄量測影像、時間戳與結構化結果。

AI 量測引擎驗證結果
MeasureMaster 介面正在驗證小客車點雲量測結果
量測紀錄影像＋時間戳

連接與部署

無縫整合既有基礎架構。

透過 REST API、SDK、JSON 與 PLC I/O，將量測結果連接至停車、收費、企業與資料庫系統，並提供完整部署支援。

REST API / SDK / JSON統包部署
MeasureMaster 連接停車、收費、企業與資料庫系統

量測輸出

車長
車寬
車高
車型分類
時間戳
量測影像
JSON API

完整解決方案範圍

由同一個部署團隊提供硬體、軟體、系統整合與專業服務。

3D 視覺硬體AE450 · IP67 · 全域快門 · GigE / PoE
AI 量測軟體偵測 · 長／寬／高 · 底盤高度 · 車型分類
工業運算平台Jetson AGX · 邊緣 AI · Linux JetPack
系統整合REST API · SDK · JSON · PLC I/O
校正與部署系統設定 · 精度驗證 · 現場安裝
專業服務技術支援 · 軟體更新 · 教育訓練 · 客製開發

多元應用場景：
滿足各產業專屬需求

LIPSMetric™ VD115 車輛尺寸量測系統採用高度彈性的系統設計，適用於多元產業場景。從智慧停車計費優化到物流體積計算，VD115 已在全球多個專案中成功部署並實際落地。

Technical schematic of a gray sedan being scanned by four "AE450" sensor units; three overhead sensors project green beams onto the car body, while a fourth sensor is positioned on the floor near the rear wheel. Computer vision visualization showing a silver electric vehicle enclosed in a green 3D bounding box as it approaches a yellow automated barrier arm at a parking garage entrance. Nighttime air freight logistics scene featuring a high-loader scissor lift raising netted cargo pallets into the open main deck side door of a Lufthansa Cargo aircraft on the tarmac. Panoramic view of a busy urban construction site featuring multiple orange excavators performing earthworks on muddy terrain, with stockpiles of black pipes and yellow barrels against a city skyline. Highway tunnel entrance featuring an arched concrete canopy and overhead digital lane control signals displaying red 'X's, an "80" km/h speed limit, and a green arrow above the active lane. Highway tunnel entrance featuring an arched concrete canopy and overhead digital lane control signals displaying red 'X's, an "80" km/h speed limit, and a green arrow above the active lane. Visualization of an automated mechanical parking system showing a gray sedan entering a ground-level lift bay guided by blue holographic arrows, with vehicles stored on multi-level green steel racks above. Smart parking assist visualization showing a black SUV reversing into a parking space overlooking a city, featuring a blue holographic trajectory grid and rear sensor detection waves. Front view of a black sedan inside an automatic car wash, featuring blue and black rotating brushes scrubbing the sides and overhead water jets spraying the windshield. Indoor parking garage scene featuring a white automated payment kiosk with a blue touchscreen standing next to a concrete pillar, with parked cars visible in the background. Smart security checkpoint visualization showing a white luxury sedan stopped at a yellow barrier gate, highlighted by a blue bounding box and scanned by green detection beams from two pole-mounted surveillance cameras. High-angle view of a vertical automated parking tower with a gray and green steel framework stacked with cars, featuring a white sedan loading passengers at the ground entrance next to a street with scooter parking zones. Exterior view of a multi-level concrete parking garage structure featuring yellow and black hazard stripes on the pillars, filled with parked cars and situated next to a landscaped outdoor parking lot.

地下／塔式停車場

掃描車輛尺寸以避免碰撞風險，並有效提升停車空間配置效率

Technical schematic of a gray sedan being scanned by four "AE450" sensor units; three overhead sensors project green beams onto the car body, while a fourth sensor is positioned on the floor near the rear wheel. Computer vision visualization showing a silver electric vehicle enclosed in a green 3D bounding box as it approaches a yellow automated barrier arm at a parking garage entrance. Nighttime air freight logistics scene featuring a high-loader scissor lift raising netted cargo pallets into the open main deck side door of a Lufthansa Cargo aircraft on the tarmac. Panoramic view of a busy urban construction site featuring multiple orange excavators performing earthworks on muddy terrain, with stockpiles of black pipes and yellow barrels against a city skyline. Highway tunnel entrance featuring an arched concrete canopy and overhead digital lane control signals displaying red 'X's, an "80" km/h speed limit, and a green arrow above the active lane. Highway tunnel entrance featuring an arched concrete canopy and overhead digital lane control signals displaying red 'X's, an "80" km/h speed limit, and a green arrow above the active lane. Visualization of an automated mechanical parking system showing a gray sedan entering a ground-level lift bay guided by blue holographic arrows, with vehicles stored on multi-level green steel racks above. Smart parking assist visualization showing a black SUV reversing into a parking space overlooking a city, featuring a blue holographic trajectory grid and rear sensor detection waves. Front view of a black sedan inside an automatic car wash, featuring blue and black rotating brushes scrubbing the sides and overhead water jets spraying the windshield. Indoor parking garage scene featuring a white automated payment kiosk with a blue touchscreen standing next to a concrete pillar, with parked cars visible in the background. Smart security checkpoint visualization showing a white luxury sedan stopped at a yellow barrier gate, highlighted by a blue bounding box and scanned by green detection beams from two pole-mounted surveillance cameras. High-angle view of a vertical automated parking tower with a gray and green steel framework stacked with cars, featuring a white sedan loading passengers at the ground entrance next to a street with scooter parking zones.

機械停車安全

車輛進場前即時量測長、寬、高，防止卡車、碰撞與設備損壞

Technical diagram of a gray sedan illustrating a floor-mounted "L215u" sensor unit near the rear wheel projecting a green under-vehicle detection zone. Technical schematic showing a gray sedan being scanned by four synchronized "AE450" sensor units, with three overhead scanners projecting green beams and one floor-mounted unit near the rear tire. Computer vision visualization showing a white electric vehicle detected within a green 3D bounding box as it approaches a yellow automated barrier at a smart parking garage entrance. Nighttime air freight logistics scene featuring a Lufthansa Cargo aircraft on the tarmac, with a high-loader scissor lift raising palletized cargo into the open main deck side door. Wide-angle view of a busy urban construction site featuring multiple orange excavators and dump trucks performing earthworks in mud, surrounded by stockpiles of black pipes and yellow barrels against a city skyline. Highway tunnel entrance featuring an arched concrete canopy and overhead digital lane control signals displaying red 'X's, an "80" km/h speed limit, and a green arrow above the active lane for an entering vehicle. Highway tunnel entrance featuring an arched concrete canopy and overhead digital lane control signals displaying red 'X's, an "80" km/h speed limit, and a green arrow above the active lane for an entering vehicle. Automated mechanical parking system visualization showing a dark gray sedan entering a ground-level lift bay guided by blue holographic arrows, while white vehicles are stored on multi-level racks above with orange structural highlights.

智慧車位分配

1 秒內完成尺寸判斷，自動分配最適合的停車位

Technical schematic of a gray sedan being scanned by four "AE450" sensor units; three overhead sensors project green beams onto the car body, while a fourth sensor is positioned on the floor near the rear wheel. Computer vision visualization showing a silver electric vehicle enclosed in a green 3D bounding box as it approaches a yellow automated barrier arm at a parking garage entrance. Nighttime air freight logistics scene featuring a high-loader scissor lift raising netted cargo pallets into the open main deck side door of a Lufthansa Cargo aircraft on the tarmac. Panoramic view of a busy urban construction site featuring multiple orange excavators performing earthworks on muddy terrain, with stockpiles of black pipes and yellow barrels against a city skyline. Highway tunnel entrance featuring an arched concrete canopy and overhead digital lane control signals displaying red 'X's, an "80" km/h speed limit, and a green arrow above the active lane. Highway tunnel entrance featuring an arched concrete canopy and overhead digital lane control signals displaying red 'X's, an "80" km/h speed limit, and a green arrow above the active lane. Visualization of an automated mechanical parking system showing a gray sedan entering a ground-level lift bay guided by blue holographic arrows, with vehicles stored on multi-level green steel racks above. Smart parking assist visualization showing a black SUV reversing into a parking space overlooking a city, featuring a blue holographic trajectory grid and rear sensor detection waves. Front view of a black sedan inside an automatic car wash, featuring blue and black rotating brushes scrubbing the sides and overhead water jets spraying the windshield. Indoor parking garage scene featuring a white automated payment kiosk with a blue touchscreen standing next to a concrete pillar, with parked cars visible in the background.

精準計費確認

無縫整合停車、收費與管理系統，支援依車輛尺寸進行精準計費

"A white car entering an automated car wash, highlighted by a digital green bounding box, demonstrating LIPS 3D depth camera technology for precise vehicle tracking and smart industrial service management."

洗車產業

依車輛尺寸自動選擇洗車流程，並支援尺寸導向的差異化收費模式

Technical schematic of a gray sedan being scanned by four "AE450" sensor units; three overhead sensors project green beams onto the car body, while a fourth sensor is positioned on the floor near the rear wheel. Computer vision visualization showing a silver electric vehicle enclosed in a green 3D bounding box as it approaches a yellow automated barrier arm at a parking garage entrance. Nighttime air freight logistics scene featuring a high-loader scissor lift raising netted cargo pallets into the open main deck side door of a Lufthansa Cargo aircraft on the tarmac. Panoramic view of a busy urban construction site featuring multiple orange excavators performing earthworks on muddy terrain, with stockpiles of black pipes and yellow barrels against a city skyline. Highway tunnel entrance featuring an arched concrete canopy and overhead digital lane control signals displaying red 'X's, an "80" km/h speed limit, and a green arrow above the active lane. Highway tunnel entrance featuring an arched concrete canopy and overhead digital lane control signals displaying red 'X's, an "80" km/h speed limit, and a green arrow above the active lane. Visualization of an automated mechanical parking system showing a gray sedan entering a ground-level lift bay guided by blue holographic arrows, with vehicles stored on multi-level green steel racks above. Smart parking assist visualization showing a black SUV reversing into a parking space overlooking a city, featuring a blue holographic trajectory grid and rear sensor detection waves. Front view of a black sedan inside an automatic car wash, featuring blue and black rotating brushes scrubbing the sides and overhead water jets spraying the windshield. Indoor parking garage scene featuring a white automated payment kiosk with a blue touchscreen standing next to a concrete pillar, with parked cars visible in the background. Smart security checkpoint visualization showing a white sedan entering a facility, highlighted by a blue bounding box and scanned by two pole-mounted surveillance cameras projecting a green detection beam.

車道安全

偵測底盤高度，避免刮底盤

"High-angle view of a highway with overhead lane management signals, showcasing LIPS 3D sensing technology that uses a digital green detection zone to monitor vehicle traffic and ensure road safety."

隧道安全

防止過高車輛誤入隧道，符合法規

"A construction site scene featuring a concrete mixer truck passing through a 'WELL GRADED' gate, highlighted by a digital green bounding box representing LIPS 3D sensing technology for automated vehicle monitoring and logistics management in industrial environments."

工地管制

驗證需進場工地的大型車輛尺寸

"Nighttime operation of a Lufthansa Cargo plane being loaded with palletized freight, featuring LIPS 3D sensing technology with green digital bounding boxes to accurately measure and track logistics cargo during automated ground handling."

航空物流

起飛前量測貨車與推車尺寸，提升載重規劃效率

為什麼選擇 3D AI？超越雷射感測

相較於單點雷射或 2D 影像技術，LIPS 3D 立體視覺提供更完整的深度資訊，在量測速度、辨識能力與系統整合彈性方面具備明顯優勢。

功能
LIPS 3D AI 感測
競品 A (雷射感測)
競品 B (2D)
可量測車型
小客車 / SUV / Van
貨車, 聯結車
貨車, 聯結車
量測時間
1 秒
3–5 秒
2-3 秒
準確度
±2%
±5%
+20mm
系統整合
完整系統整合（SDK / API）
有限
有限

工業級規格設計
為嚴苛環境而生

無論是硬體耐用性或軟體相容性，LIPSMetric™ VD115 的每一項系統參數皆依照工業級標準設計，並支援多元安裝配置，以因應不同場域與空間限制。

標準配置

單相機量測方案

測量車輛高度與寬度​

| LIPS Corporation

相機 |

LIPSedge™ AE450 ×1 台

安裝方式 |

天花板

牆面

腳架

進階配置

2/3相機量測方案

測量車輛的長度、寬度與高度

"Technical illustration of a sedan vehicle monitored by three AE450 sensors, each projecting a field of view in green, demonstrating LIPS 3D sensing technology for automotive and intelligent transportation systems."

相機 |

LIPSedge™ AE450 × 2/3 台

安裝方式 |

天花板

牆面

腳架

選配

車輛底盤量測方案

測量車輛底盤高度

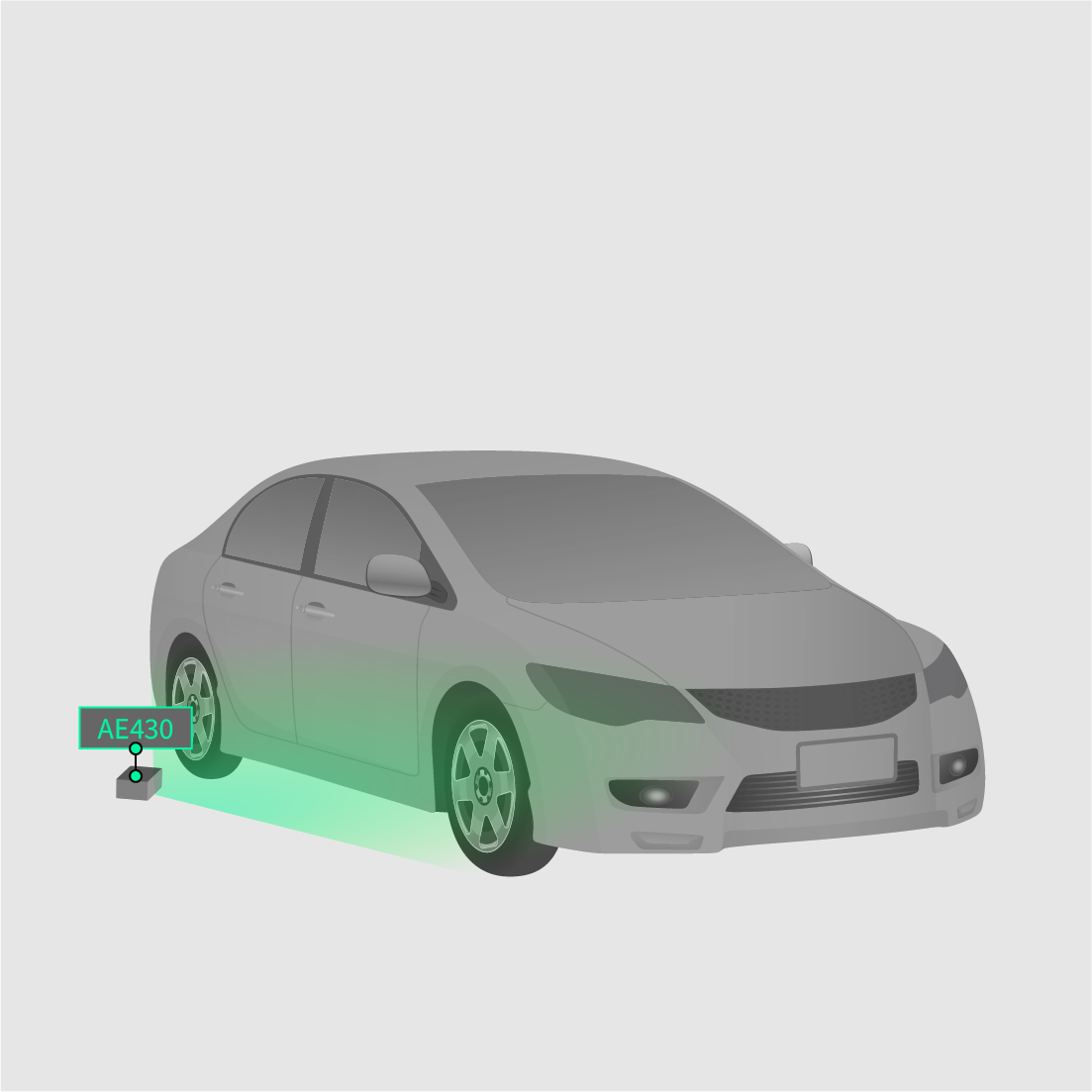

3D machine vision illustration featuring a LIPSedge AE430 active stereo camera performing an automated vehicle inspection. The ground-mounted sensor projects a green scanning field beneath a grey sedan, demonstrating intelligent undercarriage scanning, spatial measurement, and smart traffic AI solutions.

相機 |

LIPSedge™ AE430 × 1 台

安裝方式 |

牆面

腳架

系統核心

IPC |

NVIDIA® Jetson™ Orin（32GB / 64GB eMMC）

校正 |

深度量測精度校正圖卡

整合 |

完整 SDK / API 支援

部署選項

哪一種配置最適合您的應用？

依據停車場入口所需的量測範圍與驗證需求，選擇合適的系統配置。

01

單相機方案

高度與寬度

車高
✓
車寬
✓
車長
×
底盤高度
–
相機數量
1
安裝複雜度
低
部署成本
較低
02

2／3 相機方案

長度、寬度與高度

車高
✓
車寬
✓
車長
✓
底盤高度
–
相機數量
2–3
安裝複雜度
中
部署成本
較高
03

底盤高度方案

底盤高度

車高
✓
車寬
–
車長
×
底盤高度
✓
相機數量
1
安裝複雜度
低
部署成本
較低

技術規格與需求

產品型錄
產品規格書

技術

安裝高度

量測時間

最大可量測尺寸

量測精準度

車輛尺寸量測

單相機量測方案

LIPS 3D AI 感測解決方案

> 4 m

1–2 秒

250×300cm (H × W)

±2%

車輛尺寸量測

2/3相機量測方案

LIPS 3D AI 感測解決方案

> 4 m

1–2 秒

500 × 400 × 300 cm (L × W × H)

±2%

車輛底盤高度量測

車輛底盤量測方案

LIPS 3D AI 感測解決方案

60-120cm

1 秒

30 cm（H）

±3%

系統規格

I/O

作業系統

電壓

工作溫度

4×IEEE 802.3at PoE+/PSE
 1 × HDMI (max. 3840 × 2160 @60Hz)

Linux (JetPack 6)

AC 100–240 V

-10–60°C

車輛尺寸量測

單相機量測方案

技術

LIPS 3D AI 感測解決方案

安裝高度

> 4 m

量測時間

1–2 秒

最大可量測尺寸

250×300cm (H × W)

準確度

±2%

車輛尺寸量測

2/3相機量測方案

技術

LIPS 3D AI 感測解決方案

安裝高度

> 4 m

量測時間

1–2 秒

最大可量測尺寸

500 × 400 × 300 cm (L × W × H)

準確度

±2%

車輛底盤高度量測

車輛底盤量測方案

技術

LIPS 3D AI sensing Solution

安裝高度

60–120 cm

量測時間

1 秒

最小可量測尺寸

15 cm（H）

最大可量測尺寸

30 cm（H）

量測精準度

±3%

系統規格

I/O

4×IEEE 802.3at PoE+/PSE
 1×HDMI (max. 3840×@160@60Hz)

作業系統

Linux (Jetpack6)

電壓

AC 100~240v

工作溫度

-10~60

LIPSMetric™
車輛尺寸量測

即時智慧車輛尺寸量測系統

立即購買

您現在可以立即部署LIPSMetric™車輛尺寸量測，全面優化您的停車與物流營運效率。

聯絡我們

常見問題

安裝與設定

Q1: 安裝需要多久？

A: 大多數專案皆由認證技術人員進行安裝，包含設備固定、網路設定與系統校正，整體安裝時間約 4–6 小時內完成。

Q2: 安裝高度需求為何？

A: 車輛尺寸量測需安裝於 4 公尺以上高度；底盤量測安裝高度為 50–120 公分，支援牆面或地面安裝。

Q1: 可否戶外使用？

A: 可以。LIPSedge™ AE450 具備 IP67 等級防護，可在戶外及多變光照條件下穩定運作。

Q2: 可量測的最大車輛尺寸？

A: 最大可量測尺寸為 600 × 400 × 400 cm（長 × 寬 × 高）。

Q: 能與現有停車系統整合嗎？

A: 提供完整 SDK 與 API，並可協助進行相容性評估。
