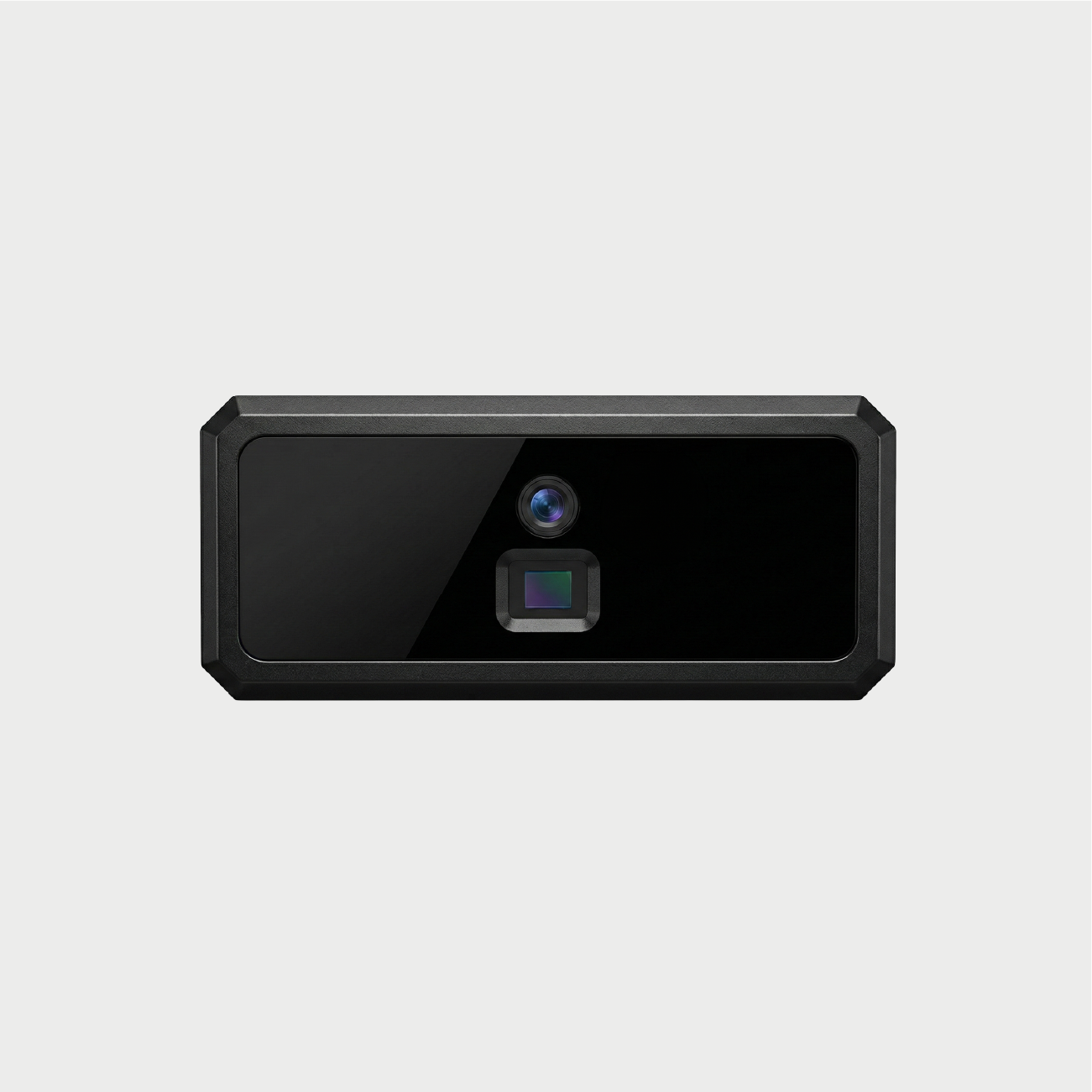

LIPSedge™ T225 is a ToF 3D depth camera enhanced by on‑board FPGA acceleration, designed to deliver stable and precise depth data of people, objects, and environments.
With high‑accuracy VGA depth (≤1%) and stable performance in high‑brightness environments, T225 enables depth-enabled solutions across industrial and real‑world applications where consistency and responsiveness matter.

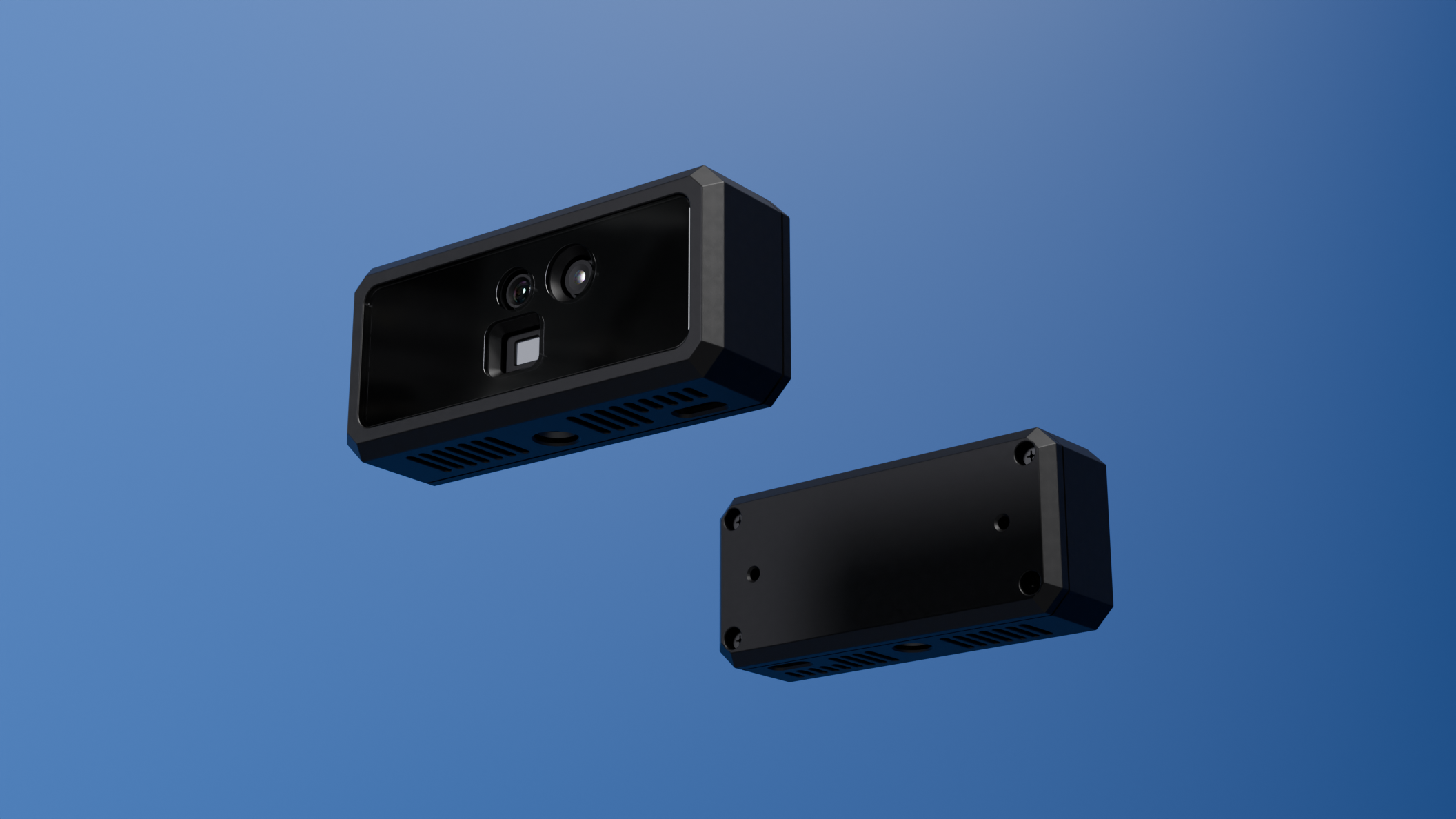

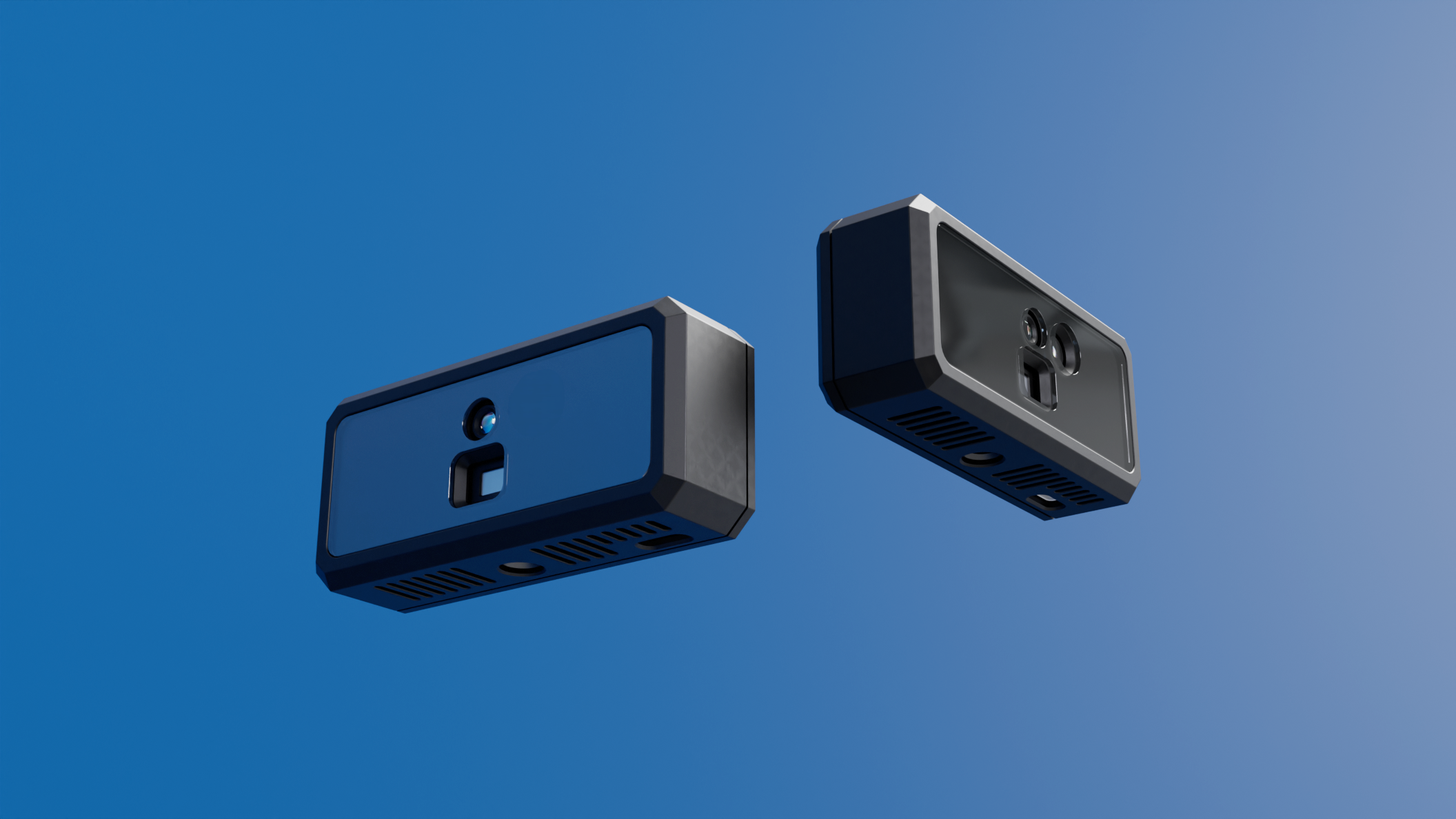

A high-tech electronic product render of two identical stereo 3D camera modules (developer hardware) floating in mid-air side-by-side against a blue background, showcasing both front sensors and side/bottom ventilation details.

[Highlight]A detailed electronic product render of a LIPS industrial 3D depth camera module floating against a solid blue background, showcasing the front optical sensor array for machine vision alongside the rear mounting interface and bottom ventilation grilles.

Efficient ToF Decoding

All-Condition Performance

Non-visible Near Infrared
Light at 940nm wavelength

Compact Size and
Small Form Factor

Precision with VCSEL
Illumination Technology

Robust and Complete SDK from LIPS

Reliable Depth Mapping
for Real‑World Environments

Accurate VGA‑resolution depth maps generated with ToF technology and efficiently processed by on‑board FPGA acceleration.

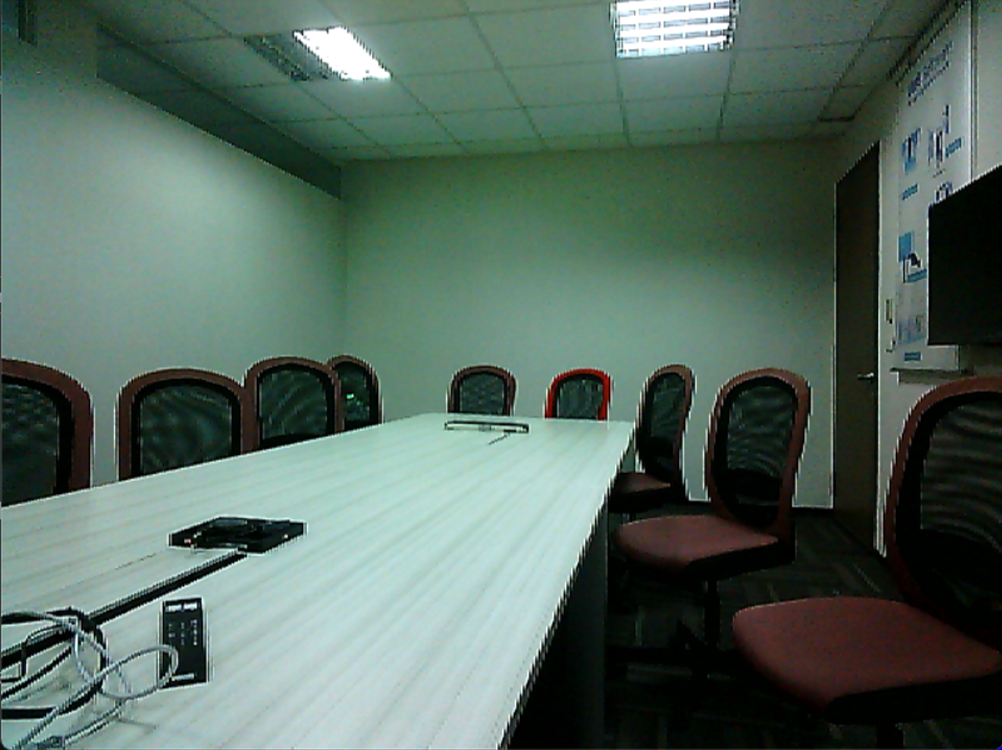

RGB

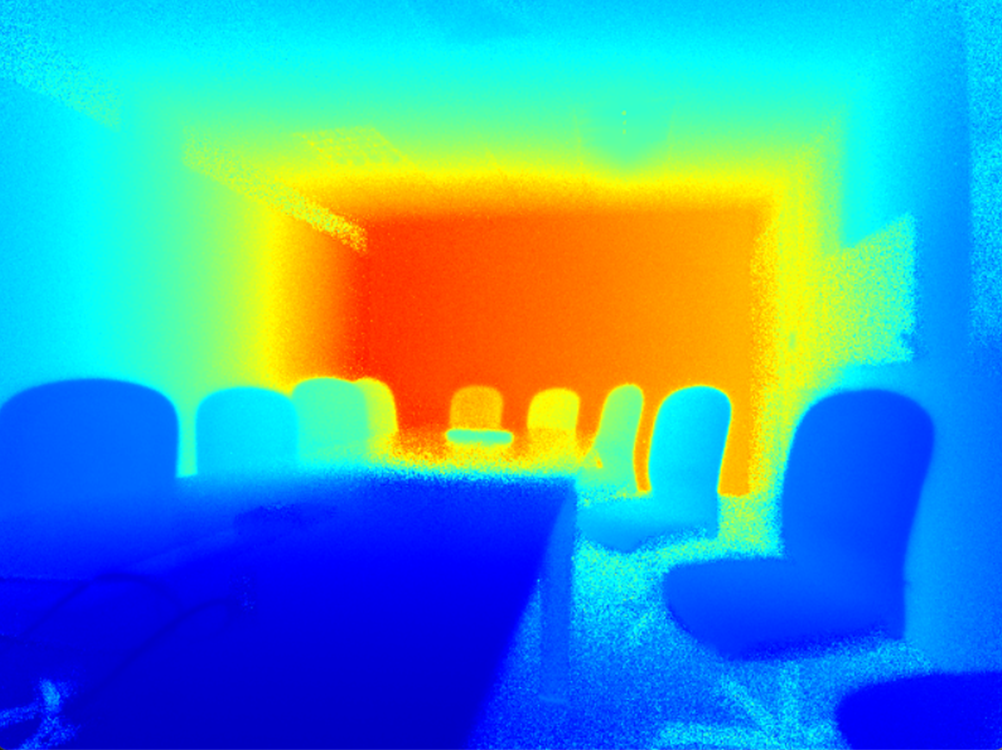

Depth

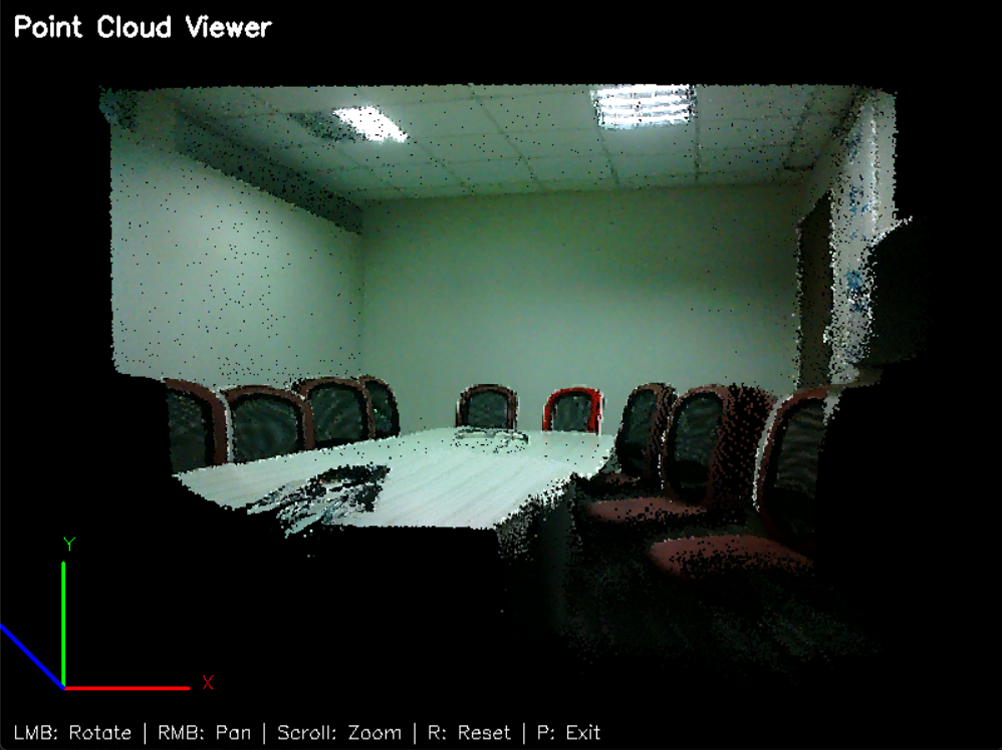

Consistent 3D Point Clouds
for Spatial Analysis

generating consistent 3D point cloud data from ToF depth data to support spatial awareness and downstream applications

High‑Performance
Time-of-Flight Depth Sensing

Equipped with a next‑generation sensor
featuring BST(Backside Scattering Technology)

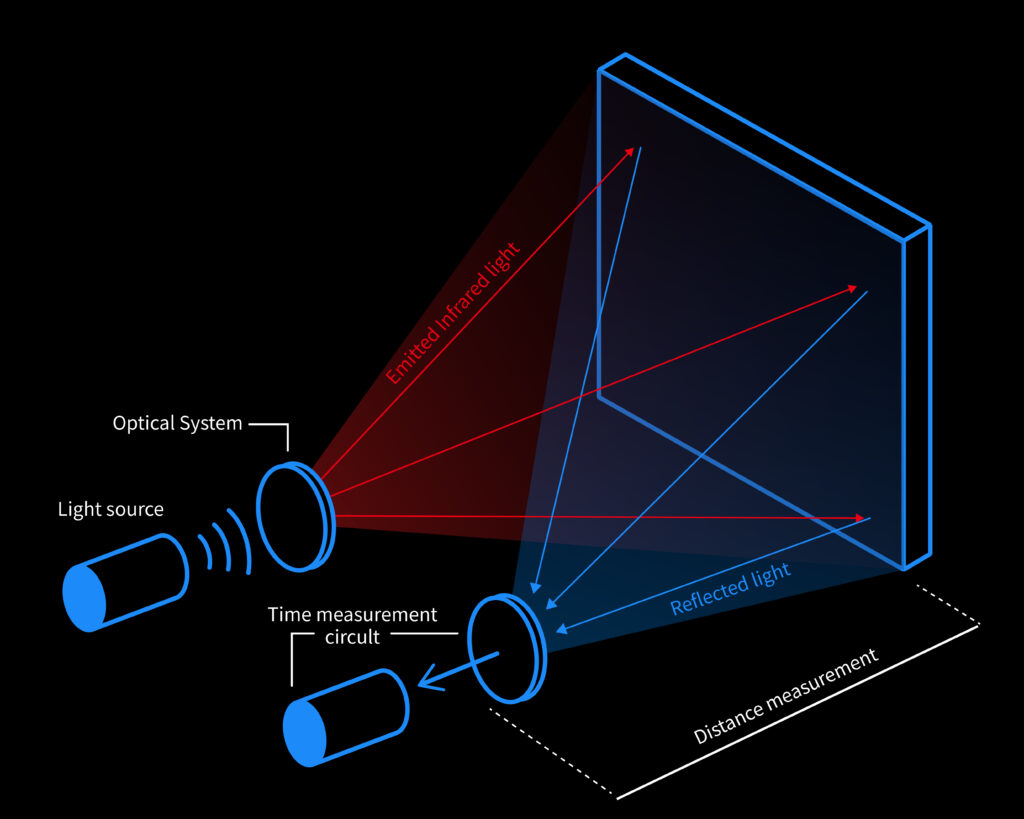

Time‑of‑Flight (ToF) technology to deliver precise depth data for applications requiring specific operating distances

Emits a modulated light signal and analyzes the phase shift of reflected light

Application use cases

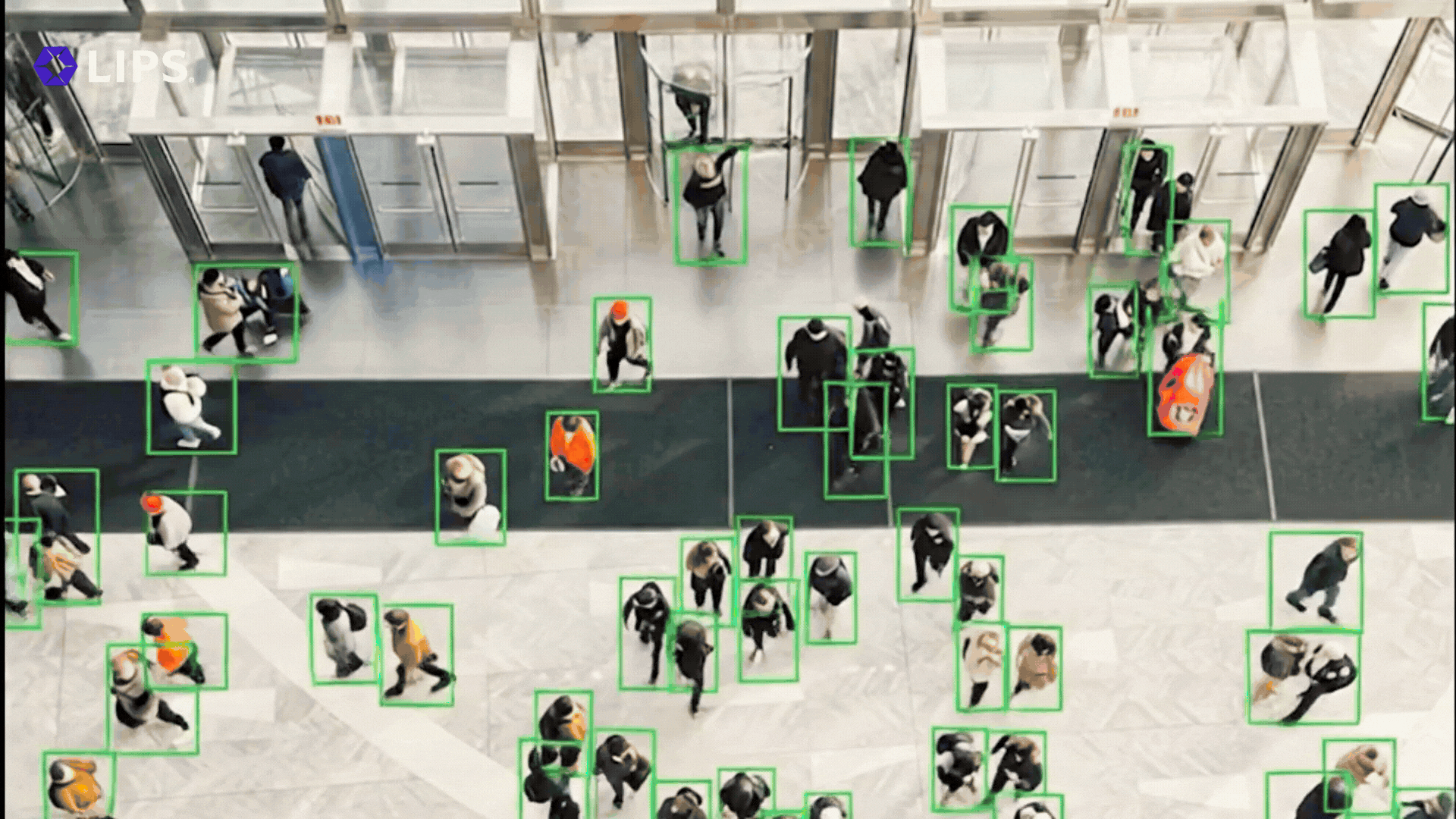

People counting & analytics  

Occupancy detection  

Gesture recognition  

Specifications and Requirements

Find the right LIPSedge 3D camera for your needs.

LIPSedge™ T225

LIPSedge™ T235

Depth

Technology

TOF

Maximum Working Distance

6m +

Minimum Working Distance

0.3m

Frame Rate

640 × 480 @ 60fps

FoV ( H × V × D )

85.1° x 69° x 98.9° (Standard model)

Shutter Type

Global Shutter

Z Accuracy

≤1%

RGB

Resolution

―

640 × 480 @ 60fps

FoV ( H × V × D )

―

71.1° x 56.8° x 84°

Shutter Type

―

Rolling Shutter

Illumination

Illumination Type

Infrared

IR Wavelength

940nm

Illuminating Component

Vertical-Cavity Surface-Emitting Laser (VCSEL)

General

Dimension (mm)

81.9 x 35.7 x 23.0

Weight (g)

95g

98g

Ambient Temperature (℃)

0℃ - 50℃

Storage Temperature (℃)

-20℃ - 60℃

Output Interface

USB Type-C

Power

DC 5V3A

Supported OS

Windows / Linux / Jetson Linux

Working Environment

Indoor

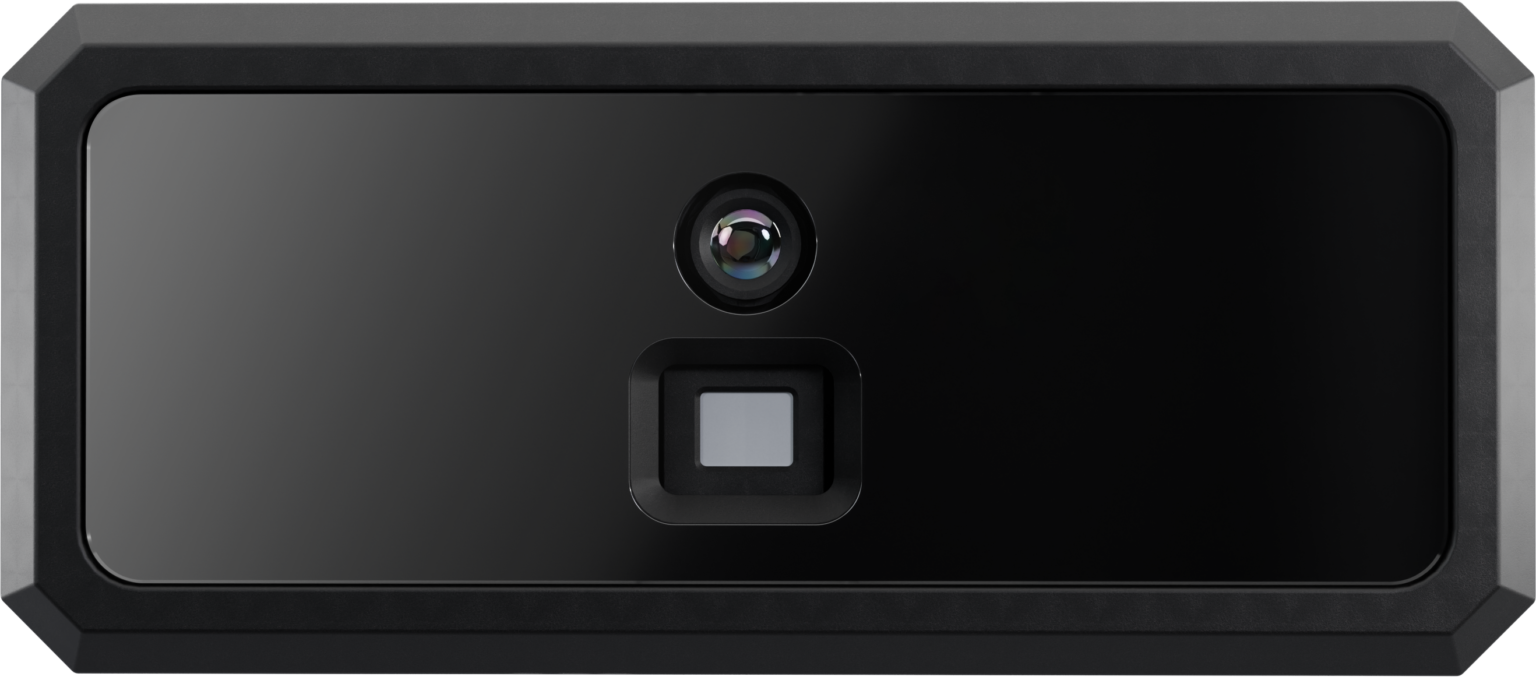

LIPSedge™ T225

Depth

Technology

TOF

Maximum Working Distance

6m +

Minimum Working Distance

0.3m

Frame Rate

640 × 480 @ 60fps

FoV ( H × V × D )

85.1° x 69° x 98.9° (Standard model)

Shutter Type

Global Shutter

Z Accuracy

≤1%

Illumination

Illumination Type

Infrared

IR Wavelength

940nm

Illuminating Component

Vertical-Cavity Surface-Emitting Laser (VCSEL)

General

Dimension (mm)

81.9 x 35.7 x 23.0

Weight (g)

95g

Ambient Temperature (℃)

0℃ - 50℃

Storage Temperature (℃)

-20℃ - 60℃

Output Interface

USB Type-C

Power

DC 5V3A

Supported OS

Windows / Linux / Jetson Linux

Working Environment

Indoor

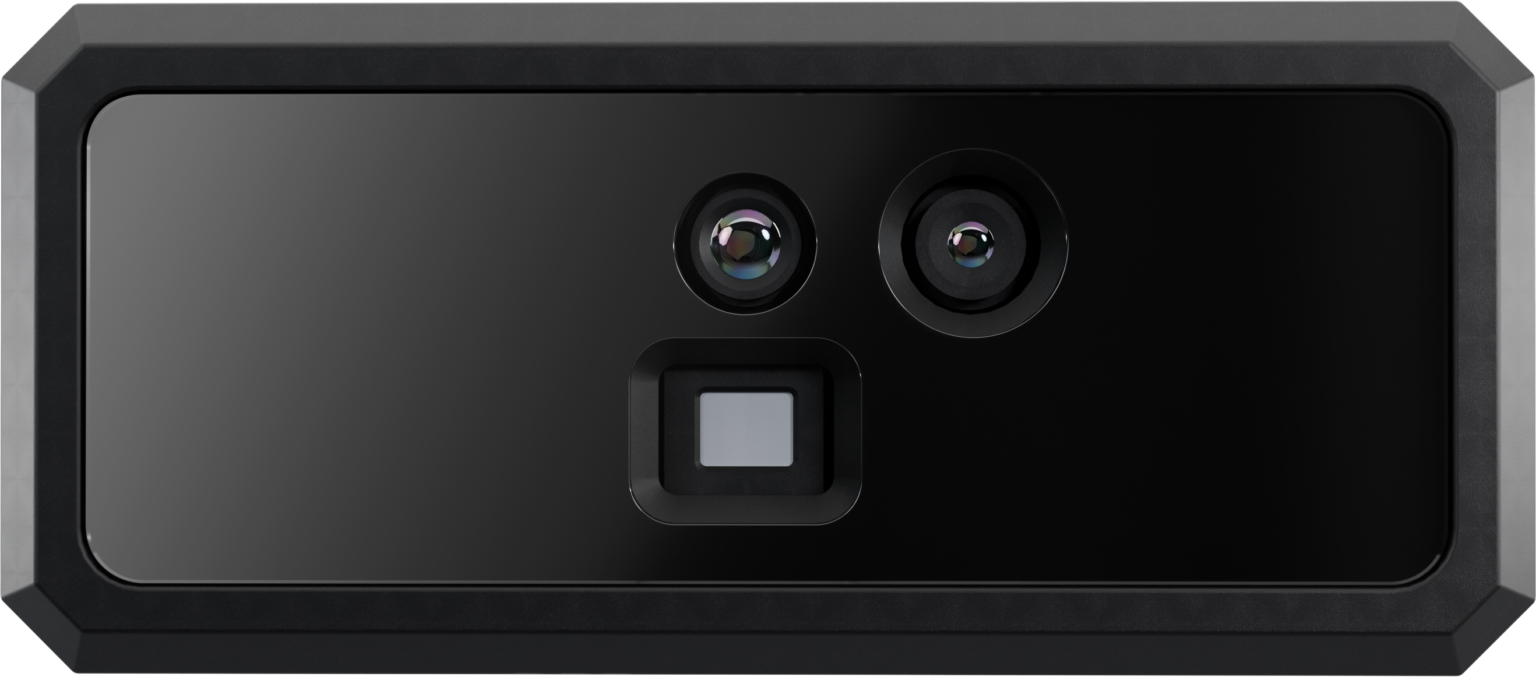

LIPSedge™ T235

Depth

Technology

TOF

Maximum Working Distance

6m +

Minimum Working Distance

0.3m

Frame Rate

640 × 480 @ 60fps

FoV ( H × V × D )

85.1° x 69° x 98.9° (Standard model)

Shutter Type

Global Shutter

Z Accuracy

≤1%

RGB

Resolution

640 × 480 @ 60fps

FoV ( H × V × D )

71.1° x 56.8° x 84°

Shutter Type

Rolling Shutter

Illumination

Illumination Type

Infrared

IR Wavelength

940nm

Illuminating Component

Vertical-Cavity Surface-Emitting Laser (VCSEL)

General

Dimension (mm)

81.9 x 35.7 x 23.0

Weight (g)

98g

Ambient Temperature (℃)

0℃ - 50℃

Storage Temperature (℃)

-20℃ - 60℃

Output Interface

USB Type-C

Power

DC 5V3A

Supported OS

Windows / Linux / Jetson Linux

Working Environment

Indoor

Compare Cameras

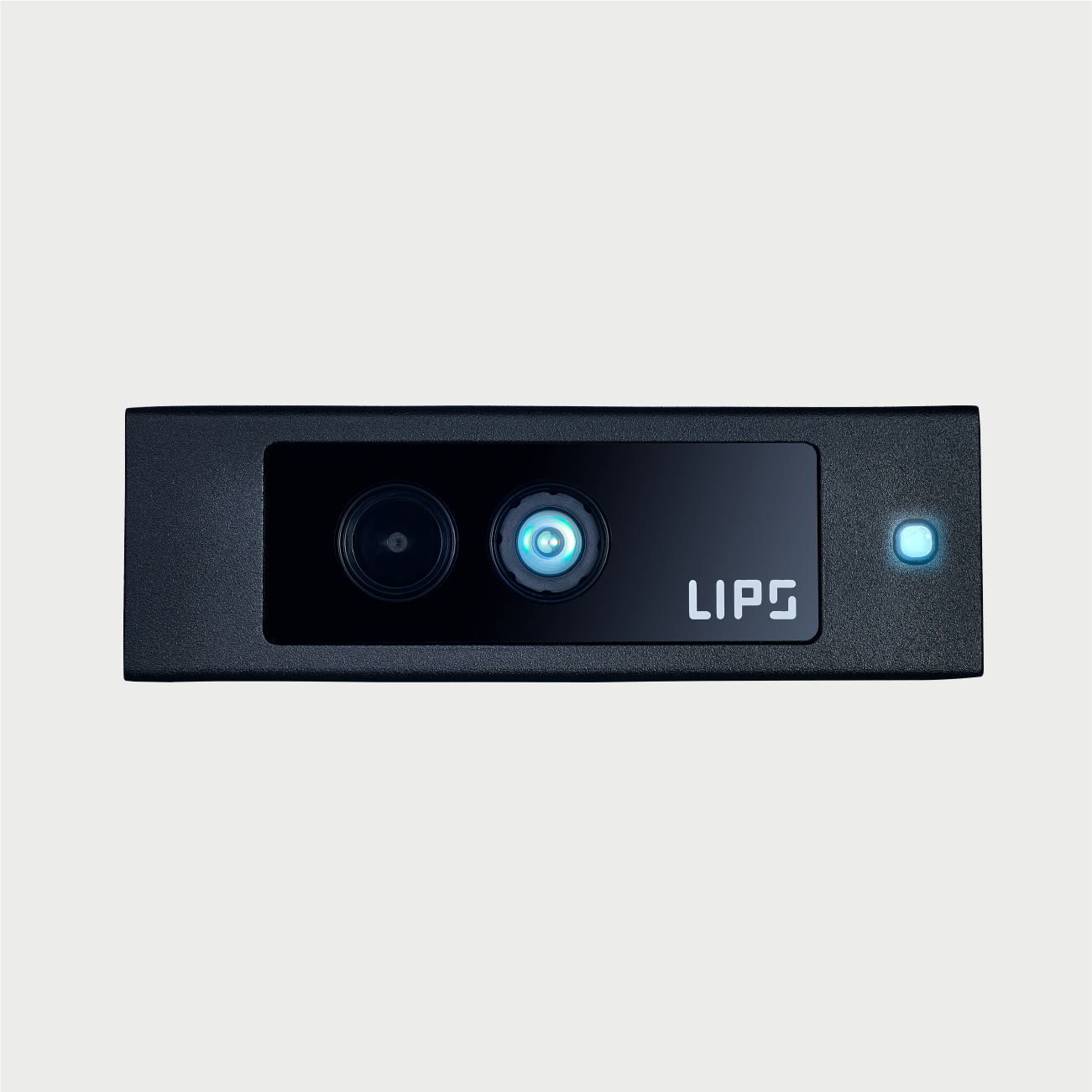

LIPSedge™ DL

All-in-One 3D ToF Camera

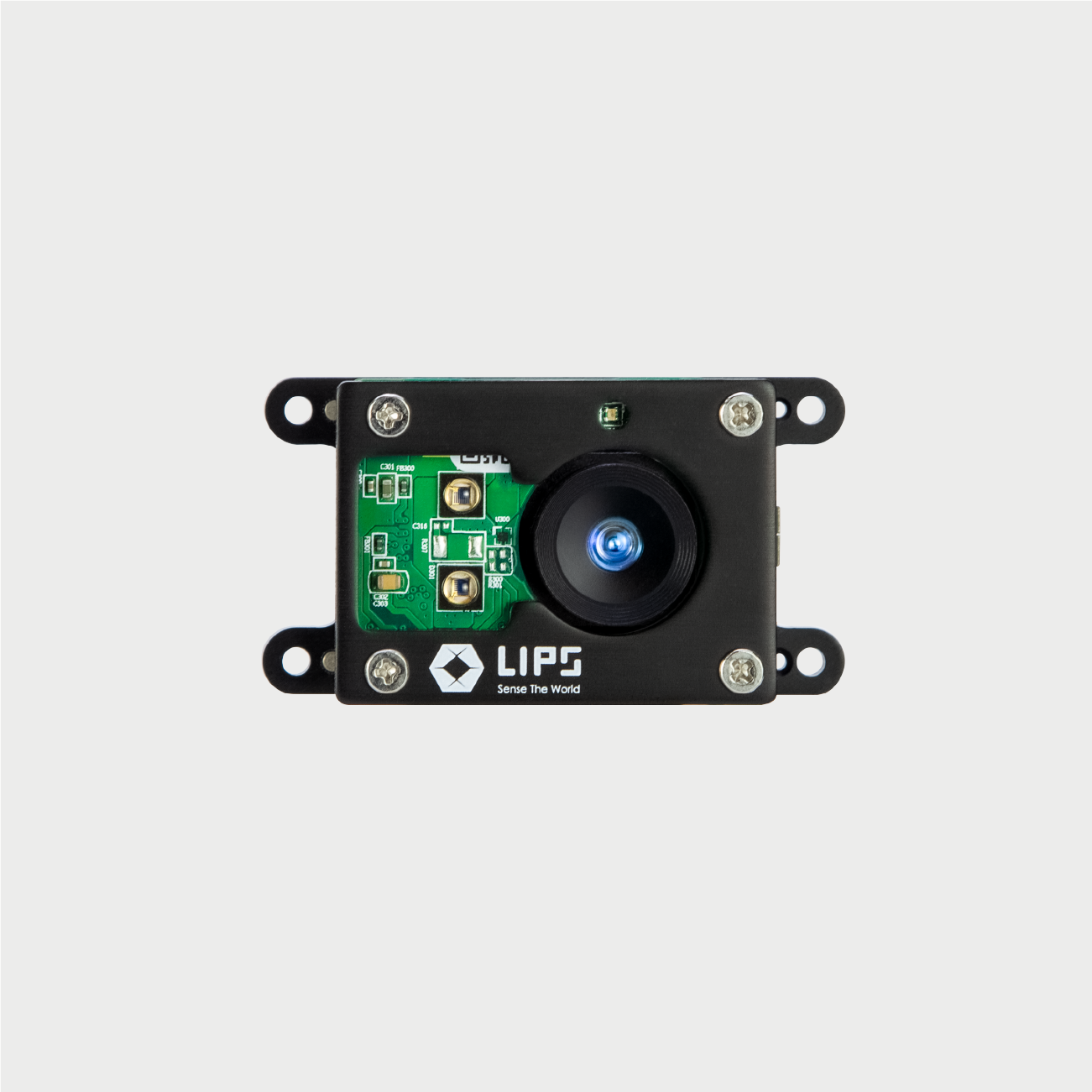

LIPSedge™ M3

Mini Size, Precise Position and Location

LIPSedge™ T225

FPGA-Accelerated ToF 3D Depth Sensing

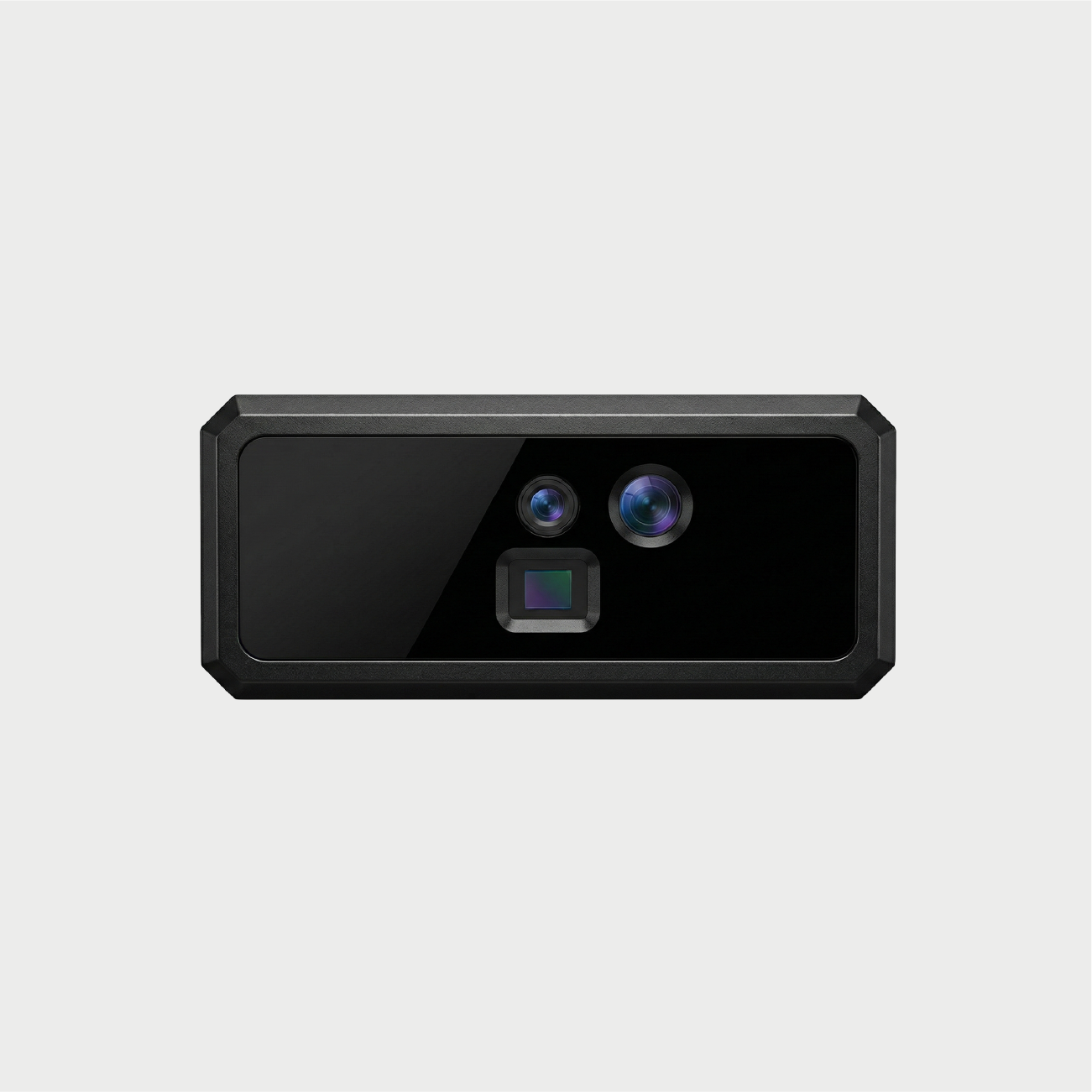

LIPSedge™ T235
