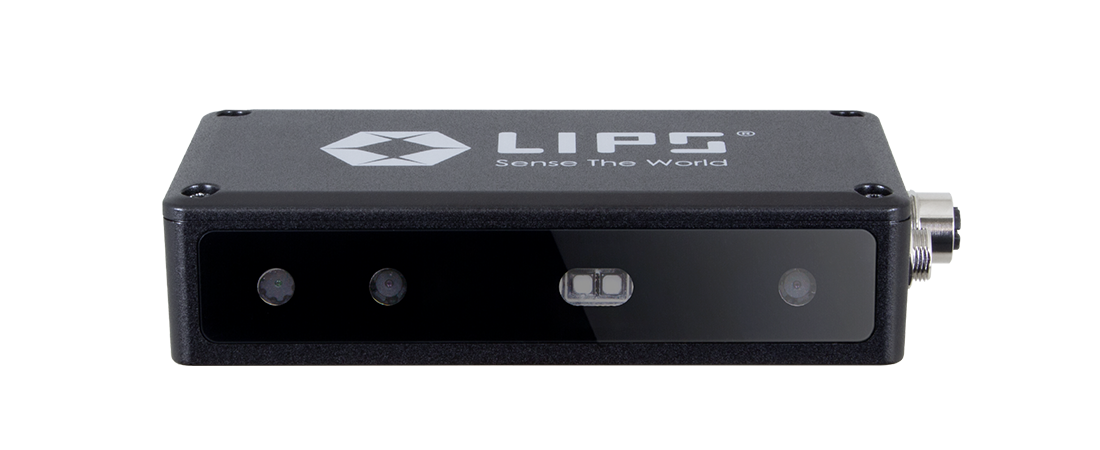

Let us present the smallest member to the LIPSedge AE Series, the LIPSedge AE430. With only 280 grams of weight, compact form factor, GigE/PoE support, edge-AI SOC, and IP67 dust & water-proof, LIPSedge™ AE430 is an excellent 3D camera choice for the robotic hand-eye and factory automation applications.

LIPS Depth Enhancement

LIPSedge™ AE430 provides enhanced depth image to remove undesired noise while improving precision and accuracy per depth pixel capturing.

Glass surface

Before

After

Background up to 8m in distance

background distance 1 | LIPS Corporation

background distance 2 | LIPS Corporation

Before

After

High Contrast Noise scenes

high contrast noise 1 | LIPS Corporation

high contrast noise 2 | LIPS Corporation

Before

After

Ceiling with LED reflection

Before

After

Outdoor Light Conditions

Before

After

Industrial Ready

LIPSedge™ AE430 features IP67-compliant ruggedized casing for industrial application. M12 locked-cable provides secure PoE connectivity to withstand tough environment or robotic arm twists and turns. 6H anti-scratch tempered glass provides ultimate protection for the camera lens.

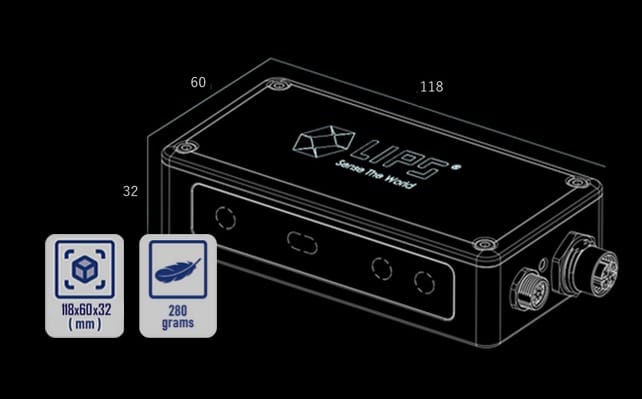

Compact and Light Weight

LIPSedge™ AE430 weights only 280g and is compact in size. It is great for robotic hand-eye applications.

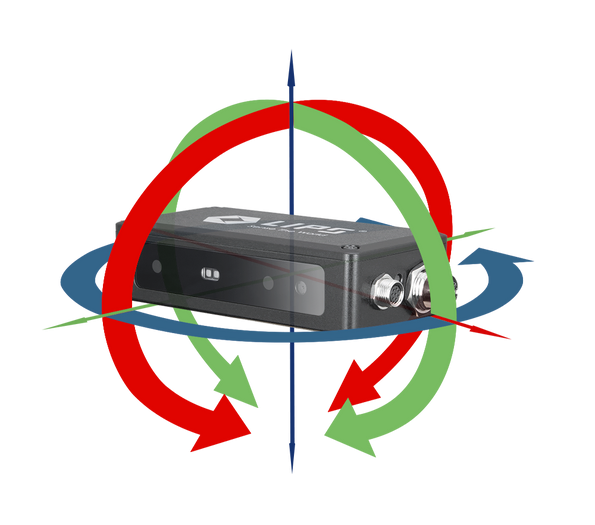

An IMU inside

The LIPSedge ™ AE430 comes with a built-in 6 axis Inertial Measurement Unit (IMU), which allows precision and accuracy for its position and movement location details.

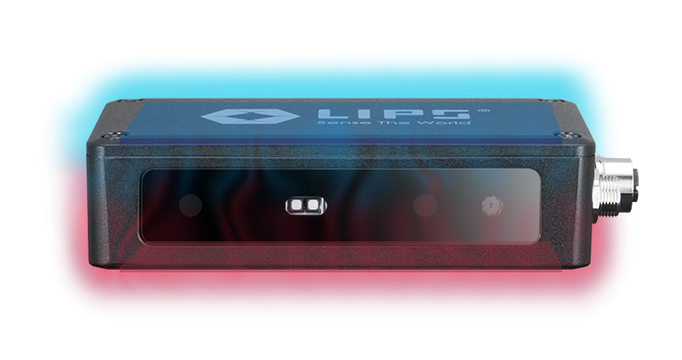

Built-in Heatsink

Built-in heatsink allows heat to dissipate easily from the camera body while ensuring long periods of operation without interruption
No external heatsink required

Persistent Connection

Supports GigE with PoE that allows data transmission and power supply (802.3 af / at) up to 100 meters
Remain in the same session even after occasional disconnection (<15 seconds) without restarting

Know more…

Open-root with Edge Computing

Run neural network applications at 5.0 TOPS with edge-AI SOC as open-root. (Note: Please consult for the availability of the Development Kit)

Build Once, Deploy Unlimitedly

Cross-platform OS support on Windows & Ubuntu with common SDK. Android & MacOS support is upon request
Cross-platform hardware support on Intel (x86) and Nvidia Jetson (arm)

Develop with LIPSedge™ SDK

LIPSedge SDK™ supports variety of programming languages including Python, C, C++, C#, Visual Basic, Java, Flutter, and more
LIPSedge SDK™ also supports widely used industrial 3D framework including OpenNI, OpenCV, ROS/ROS2, Nvidia Isaac, Halcon.

Strong LIPSense™ Middleware Support

LIPSedge™ AE430 is compatible with LIPSense™ middleware including LIPSense™ 3D Body Pose SDK, LIPScan™ 3D SDK, and more

Application uses cases

vision guided robotics

LIPScan 3D Scan SDK

LIPSafeGuard 3D Virtual Fence

Start developing with LIPS

Our LIPSedge™ SDK offers a variety of wrappers supporting popular programming languages and platforms

Documentation

Get Started

User Manual

3D CAD File

Software

SDK

Firmware

Release History

Specifications

Depth

Technology:

Active Stereo

Ideal Working Distance:

4 meters

Frame Rate:

Up to 60fps

FoV (H x V x D):

65° x 40° x 72°

XY Resolution:

1280x720@30fps, 640x480@60fps

Minimum Depth Distance

~45cm

Shutter Type:

Rolling Shutter

Z Accuracy:

≤2% (up to 2 meters and 80% of FoV)

*The Accuracy will vary with disance.

RGB

Resolution:

1920x1080@15fps,
1280x720@30fps,
640x480@60fps

FoV (H x V x D):

69.4° x 42.5° x 77°

Illumination

Type:

Infared

Wavelength:

850nm

Inertial Measurement Unit

IMU Sensor:

6-axis (3D Accelerator & Gyroscope)

Neural Processing Unit (NPU)

ARM Cortex:

Quad Core ARM Corex-A73, paired with Dual Core

Cortex A-53 CPU, ARM Mali-G52 GPU

Run neural network applications at 5.0 TOPS

General

Dimension (mm):

118 x 32 x 60 mm

Storage Temperature:

-40 ~ 60˚C

Built-In:

Industrial Heatsink

Power:

PoE (IEEE 802.3 at/at)

M12-to-RJ45 Cable (included)

Power wire (12V, 1A) with M8 standard connector

Weight(g):

Approximately 280 g

Ambient Temperature:

0 ~ 40˚C

Working Environment:

Indoor / Outdoor

Output Interface:

M12 to Gigabit Ethernet cable for power and data

SDK

Multiple Frameworks supported:

OpenNI, OpenCV, NVIDIA Isaac, ROS/ROS2, Halcon

OS

Windows 10

Ubuntu 18.04 / 20.04 / 22.04 LTS
