LIPSedge™ AE430 Industrial Ruggedized Active Stereo

For Robotic Hand-Eye & Factory Automation Applications



LIPS® releases its LIPSedge™ AE430 with Edge Processing capabilities up to 5.0 TOPS, from the Industrial LIPSedge™ AE Series.

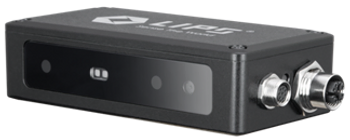

An Industrial Ready Ruggedized Active Stereo 3D Depth Camera


  • Depth Enhancement for Low Noise

  • Ultra-Light Weight with 280g

  • Compact & Slim Form Factor

  • IP67 Dust & Water-Proof

  • GigE & PoE support

  • Persistent Connection

  • SDK and Frameworks

  • Edge A.I. Computing


Meeting the highest demands for Robotics Arms with just 280 grams; easy mounting with its compact and slim shape, the LIPSedge™ AE430 connectivity can also be secured with both the built-in M12 Lock and Persistent Connection firmware feature, and a 6H Industrial Grade Protective glass for anti-scratch. With a Built-In Heatsink, and industrial grade housing, the heat is easily dissipated for stability and long-term operation.



A full and comprehensive support with LIPSedge™ SDK Ecosystem, Industrial Frameworks documentation support including: GenICam for Halcon and Aurora Vision, NVIDIA Preferred Partner for NVIDIA Isaac deployments, ROS and ROS2 libraries.



Enable Edge A.I. Computing directly and processing directly On-Device with LIPSedge™ AE430 as Open-Root, Emulate and Test with QEMU on different platforms, develop and use most widely available Neural Networks libraries supported in the market such as Tensor Flow and Caffee.

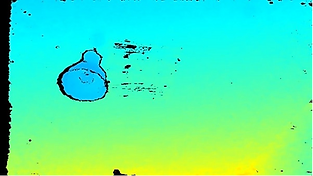

Enhanced Depth Image

Identical Point Cloud with Registration vs. RGB

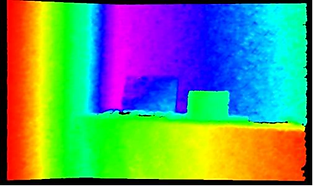

Clean and Low Noise Depth Images

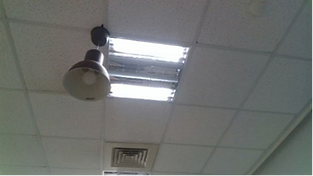

High Contrast Scenarios

With Clean and Low Noise

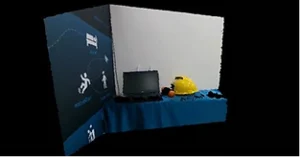

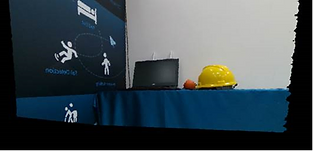

Realistic Point Cloud

In Different Angles

Industrial Qualified


  • M12 Lock securing the physical connection.

  • 6H Protective Glass for endurance in harsh environments.

  • Scratch Resistance Glass avoids scratches affecting measurements.

  • IP67 (Ingress Protection) Certified against dust & water.

  • Built-In Heatsink up to 50C for stability and long-term operation.

  • Persistent Connection in the Network Session without Resets.

  • GigE and Power-over-Ethernet for easy installation.

  • IMU of 6-axis for Precise and Accurate positioning reading.

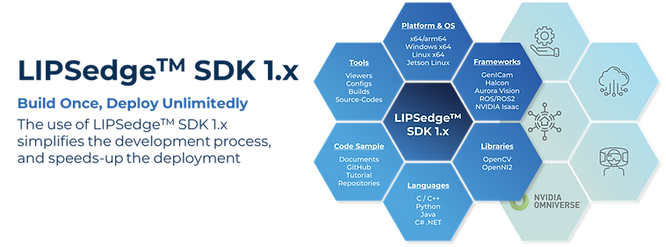

Edge A.I. Ready, LIPSedge™ SDK and Frameworks


The LIPSedge™ AE430 enables solutions to run On-Device processing for applications that require Low Latency with Edge Computing and enhanced capabilities developed from using Neural Networks models.



Bringing the benefits from reducing compilation time, the LIPSedge™ AE430 provides the choice of emulating conditions through QEMU for mostly used hardware platforms prior the deployment.



The LIPSedge™ AE430 alternatively provides the Development Kit of LIPSedge™ AE430-DK to directly test the development.


With its comprehensive support of LIPSedge™ SDK based on OpenNI2, widely used Industrial Frameworks including GenICam for Halcon™ and Aurora Vision™, ROS and ROS2, and NVIDIA Isaac™, and a complete documentation available from LIPS®, deploying Applications and Use-Cases can be made effortlessly.



To find out more, please visit LIPS® website https://www.lips-hci.com/



LIPS® Technical Documentation: https://www.lips-hci.com/developer-documentation

LIPS® Frameworks Support: GenICam(Halcon/Aurora Vision), ROS/2, NVIDIA Isaac





And contact directly for questions and inquiries to info@lips-hci.com
